SCGT09T312N.G.H6 PD70

SCGT09T312N.G.H6 PD70

Paul Horn
Артикул: SCGT09T312NGH6PD70
В наличии
В корзину

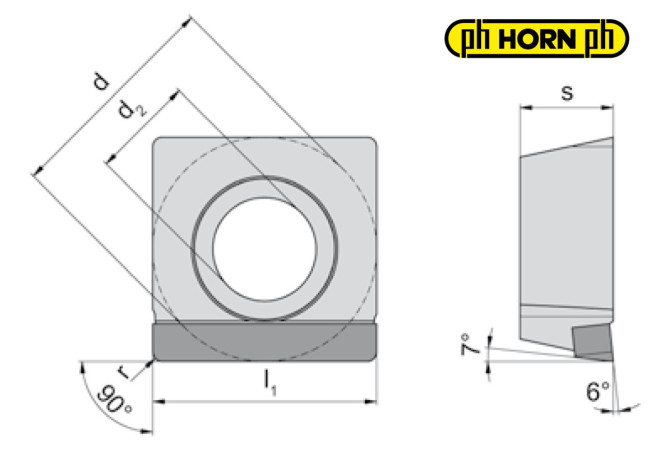

Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
G.H6
CECC Cutting edge condition code
F - Sharpedged
COMPC Company code
HORN - Paul Horn
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
2/6/2015
DIN
SC09T3123N
EPSR Insert included angle
90 Degree
FamilyProducts
SCGT Diamond tipped, complete edge
GAN Insert rake angle
6 Degree
GRDMFG Grade manufacturers designation
PD70
IC Inscribed circle diameter
9.525 mm
ID Technical product number
SCGT09T312NGH6PD70
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
L Cutting edge length
9.525 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SC09T3123N
Name Identifying order number
SCGT09T312N.G.H6 PD70
RE Corner radius
1.2 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
SCGT09T312
STDDESAnsi Standard designation ANSI
SCGT32.53
TCE Tipped cutting edge code
B
TCINS Tolerance class insert
G
Working process
DDA - External turning,DDI - Internal turning
