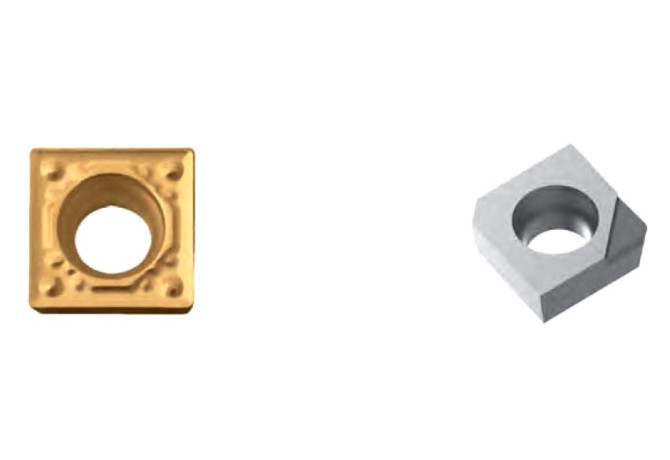

SCGT09T308N-U19-FU430

Артикул: SCGT09T308N-U19-FU430

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

U19

COMPC Company code

MP - Mapal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2013

DIN

SC09T3 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Radial indexable insert SCGT, 4 cutting edges

GAN Insert rake angle

7 Degree

GRDMFG Grade manufacturers designation

FU430

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LE Cutting edge effective length

0.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3 3N

Materials

Name Identifying order number

SCGT09T308N-U19-FU430

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SCGT09T308N

STDDESAnsi Standard designation ANSI

SCGT32.52N

TCINS Tolerance class insert

Working process

B - Drilling,BAB - Open by boring,BVB - Drilling,FEC - Square shoulder milling,FPL - Face milling
