Главная Каталог продукции Toolunited 16 201-02 - Square insert SCGT 09T308 FL K10

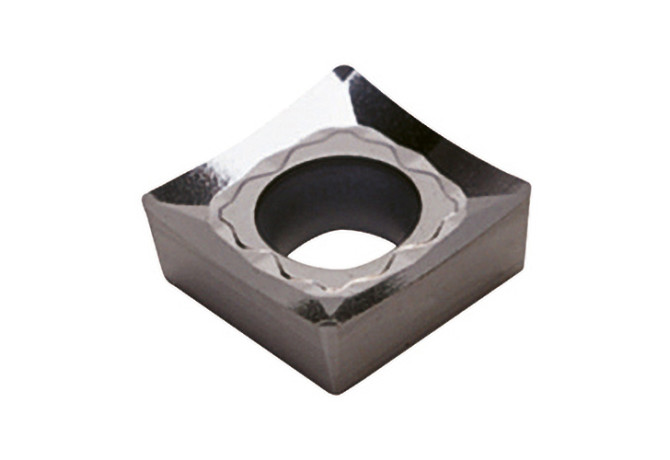

SCGT 09T308 FL K10

Артикул: 5514078

В наличии

В корзину

Описание

Характеристики

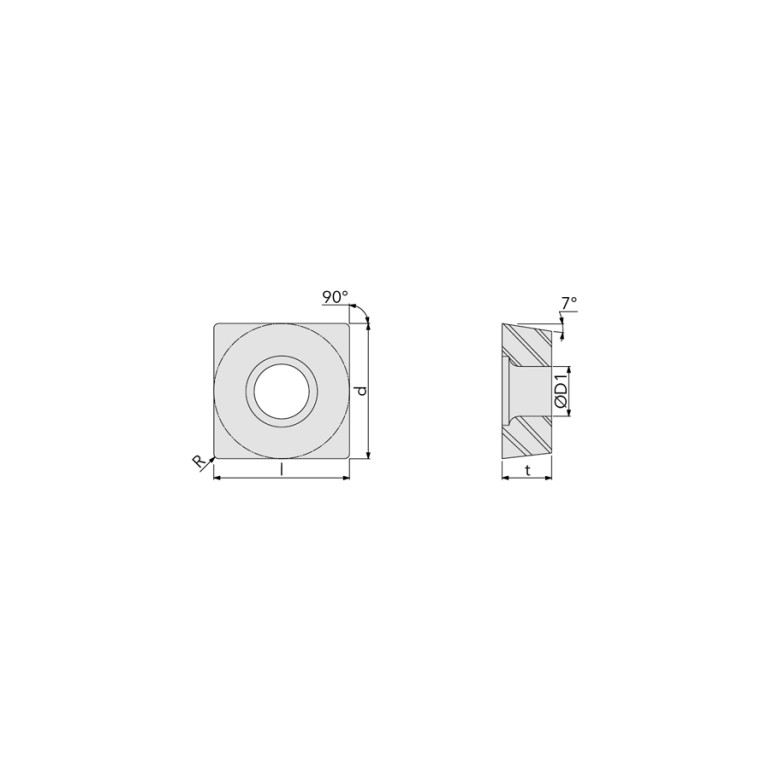

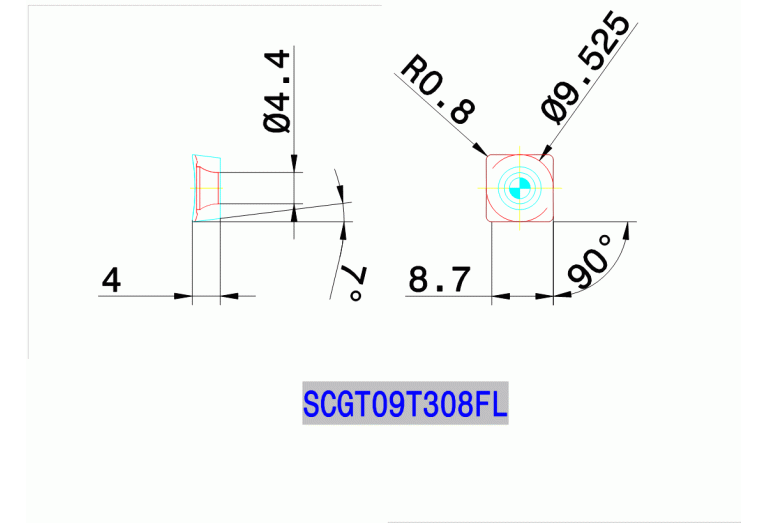

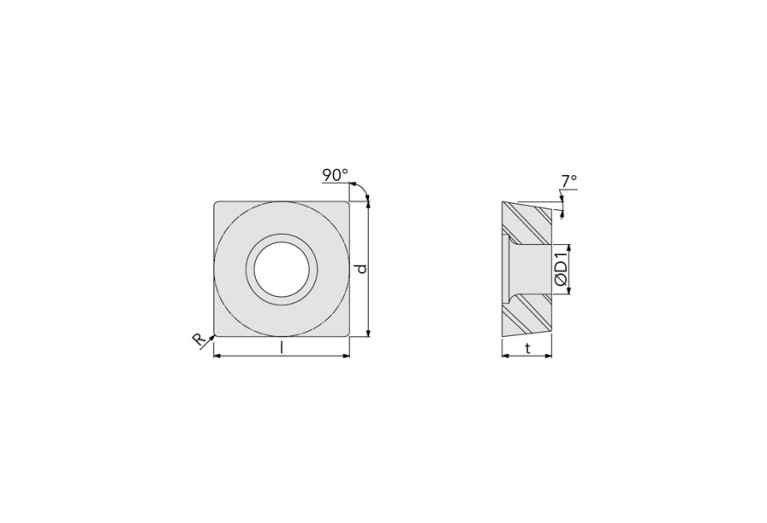

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LL - Stock limited

DIN

SC09T3083N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance square inserts for aluminum machining

GRD2ND Standard designation of the grade 2nd application

K05-K15

GRDMFG Grade manufacturers designation

K10

GRDPRIO Standard designation of the grade main application

N05-N15

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5514078

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

8.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3083N

Name Identifying order number

SCGT 09T308 FL K10

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SCGT09T308

STDDESAnsi Standard designation ANSI

SCGT32.52

TCINS Tolerance class insert

Working process

No working processes available
