Главная Каталог продукции Toolunited 16 201-02 - Square insert S845 SXMU 1606ADTR-MM IC808

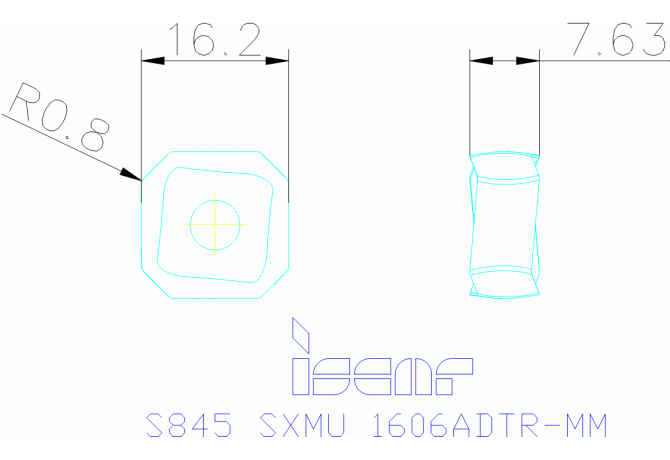

S845 SXMU 1606ADTR-MM IC808

Артикул: 5606102

В наличии

В корзину

Описание

Характеристики

BS Wiper edge length

2.84 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-338818449954094

EPSR Insert included angle

90 Degree

FamilyProducts

Square Thick Inserts with 8 Helical Right-Hand Cutting Edges

GRDMFG Grade manufacturers designation

IC808

IC Inscribed circle diameter

16.2 mm

ID Technical product number

5606102

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$338818449954094

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

16.35 mm

LOC-03 ISO

IS$$338818449954094

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-338818449954094

Name Identifying order number

S845 SXMU 1606ADTR-MM IC808

RE Corner radius

0.8 mm

S Insert thickness

7.45 mm

Working process

No working processes available

WT Weight of item

0.01 kg
