QPMT 100408PDTN IC250

Артикул: 5601447

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

15 Degree

BN Face land width

0.15 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

QP1004 3N

EPSR Insert included angle

90 Degree

FamilyProducts

QPMT 100408PDTN IC250

GB Face land angle

15 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P35

GRD3RD Standard designation of the grade 3rd application

HC-M40

GRDMFG Grade manufacturers designation

IC250

GRDPRIO Standard designation of the grade main application

HC-P15

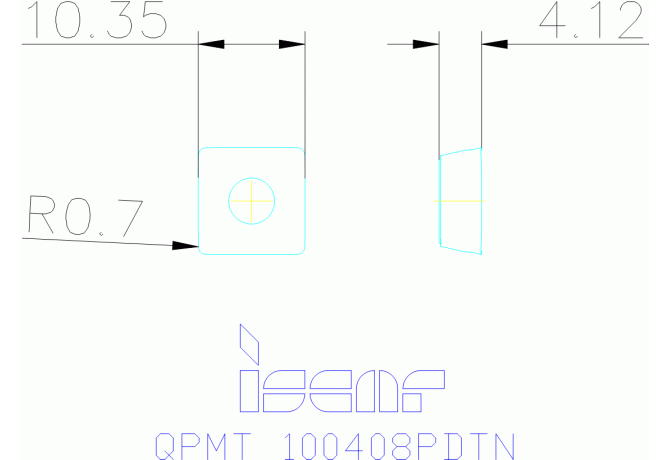

IC Inscribed circle diameter

10.35 mm

ID Technical product number

5601447

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

10.35 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

QP1004 3N

Name Identifying order number

QPMT 100408PDTN IC250

NOI Insert index count

RE Corner radius

0.7 mm

S Insert thickness

4.12 mm

S1 Insert thickness total

4.12 mm

TCINS Tolerance class insert

Working process

No working processes available
