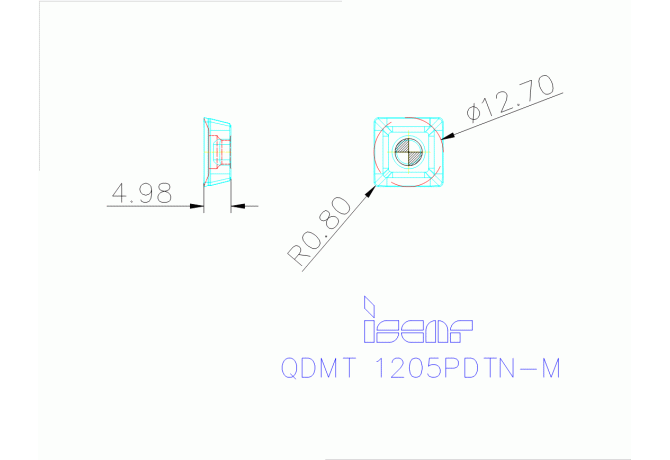

QDMT 1205PDTN-M IC4050

Артикул: 5603744

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BN Face land width

0.15 mm

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

QD1205PD3N

EPSR Insert included angle

90 Degree

FamilyProducts

QDMT 1205PDTN-M IC4050

GAN Insert rake angle

22 Degree

GB Face land angle

12 Degree

GRDMFG Grade manufacturers designation

IC4050

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5603744

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12.7 mm

LE Cutting edge effective length

10 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

QD1205PD3N

Name Identifying order number

QDMT 1205PDTN-M IC4050

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling
