QDMT 120532PDTN-M IC908

Артикул: 5604490

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-1066141592840736

EPSR Insert included angle

90 Degree

FamilyProducts

Inserts with 4 Right- or Left-Hand Cutting Edges for General Use

GRDMFG Grade manufacturers designation

IC908

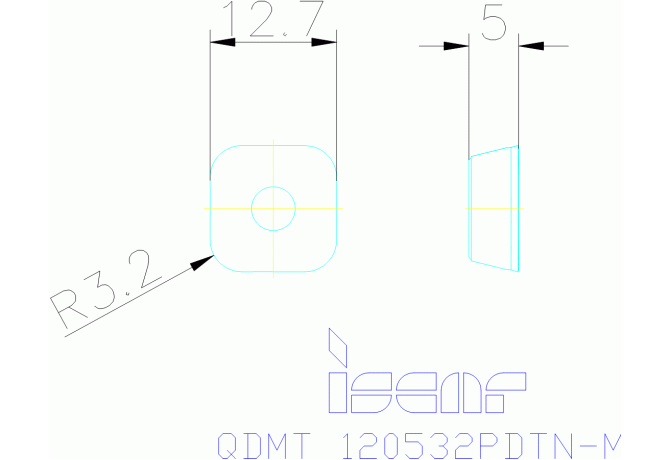

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5604490

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$1066141592840736

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03 ISO

IS$$1066141592840736

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-1066141592840736

Name Identifying order number

QDMT 120532PDTN-M IC908

RE Corner radius

3.2 mm

S Insert thickness

5 mm

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling

WT Weight of item

0.01 kg
