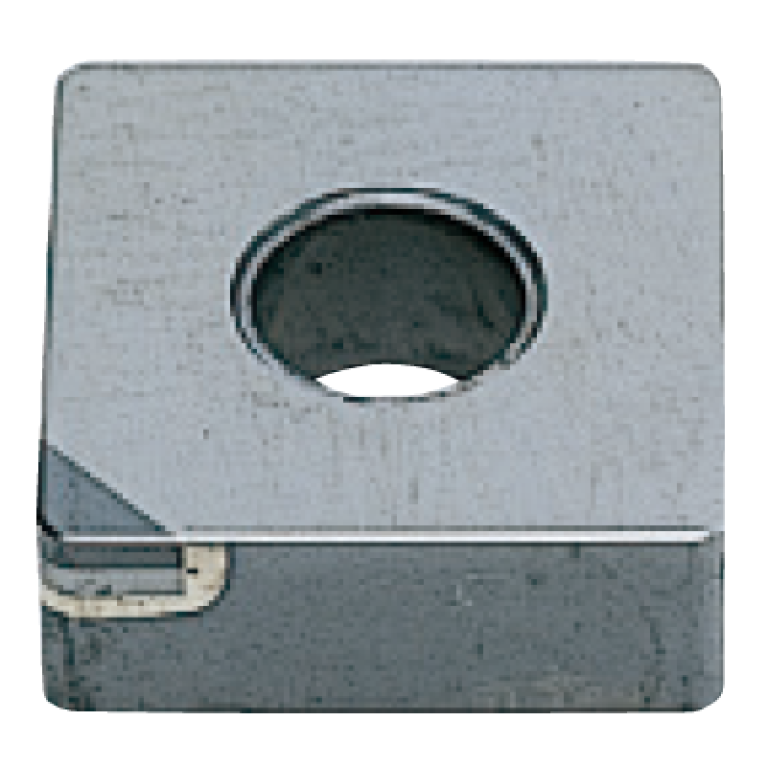

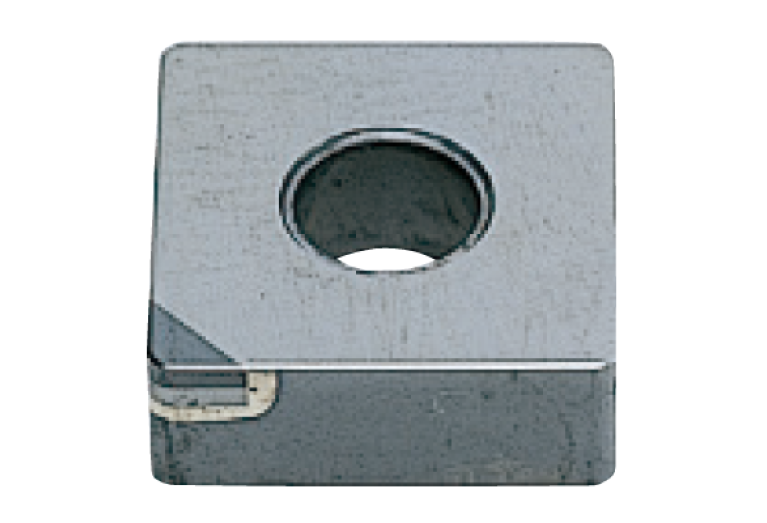

NP-SNMA120408F MB8025

NP-SNMA120408F MB8025

Mitsubishi Materials
Артикул: 413796
В наличии
В корзину

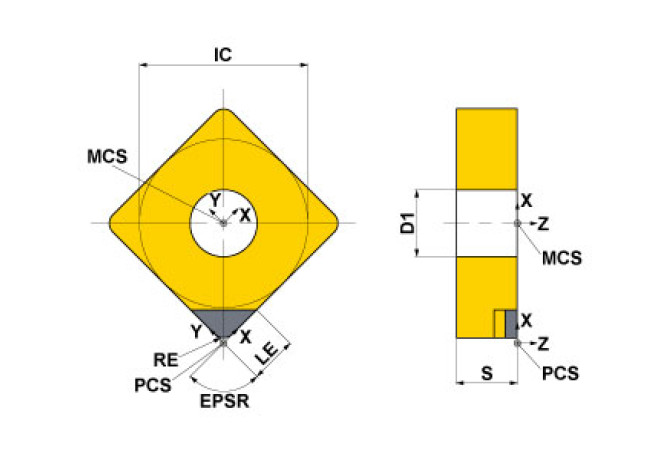

Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
5.16 mm
Delivery state valid from
4/1/2022
DIN
SN1204082N
EPSR Insert included angle
90 Degree
FamilyProducts
INSERT, TURNING, CBN
GRDMFG Grade manufacturers designation
MB8025
IC Inscribed circle diameter
12.7 mm
ID Technical product number
413796
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
L Cutting edge length
12.7 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SN1204082N
Materials
H
Name Identifying order number
NP-SNMA120408F MB8025
NameAnsi Identifying order number inch alternative
NP-SNMA432F MB8025
NOI Insert index count
1
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
SNMA120408F
STDDESAnsi Standard designation ANSI
NP-SNMA432F
TCINS Tolerance class insert
M
Working process
No working processes available
