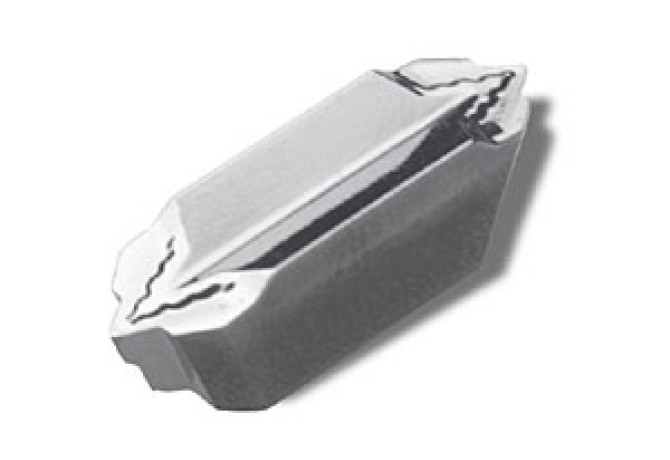

Главная Каталог продукции Toolunited 16 202-05 - Insert, two cutting edges for profiling and partial threading TC16-3 EI-N60-27P H216T

TC16-3 EI-N60-27P H216T

Артикул: TC16-3 EI-N60-27P H216T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

27P

COMPC Company code

CE - Ceratizit

CRE Spot radius

0.21 mm

D1 Fixing hole diameter

0 mm

FamilyProducts

carbide threading insert

GRDMFG Grade manufacturers designation

H216T

GRDPRIO Standard designation of the grade main application

HW-K15

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

16 mm

Interface codes

ISYC Subclass

202-05 - Insert, two cutting edges for profiling and partial threading

Name Identifying order number

TC16-3 EI-N60-27P H216T

NOF Flute count

NT Tooth count

PDPT Profile depth insert

4.11 mm

PDX Profile distance X

3.1 mm

PFS Profile form

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPN Thread pitch minimum

3.5 mm

TPT Thread profile type

T - Partial profile

TPX Thread pitch maximum

5 mm

TTP Thread type

B - External and internal thread

W1 Insert width

6.2 mm

Working process

No working processes available
