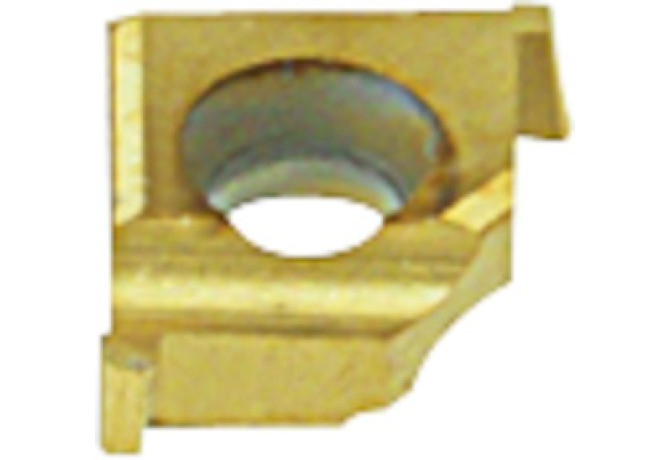

Главная Каталог продукции Toolunited 16 202-05 - Insert, two cutting edges for profiling and partial threading 271030 0,6

271030 0,6

Артикул: 271030 0,6

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

ANR Clearance angle flank right hand

7 Degree

COMPC Company code

HOG - Hoffmann Group

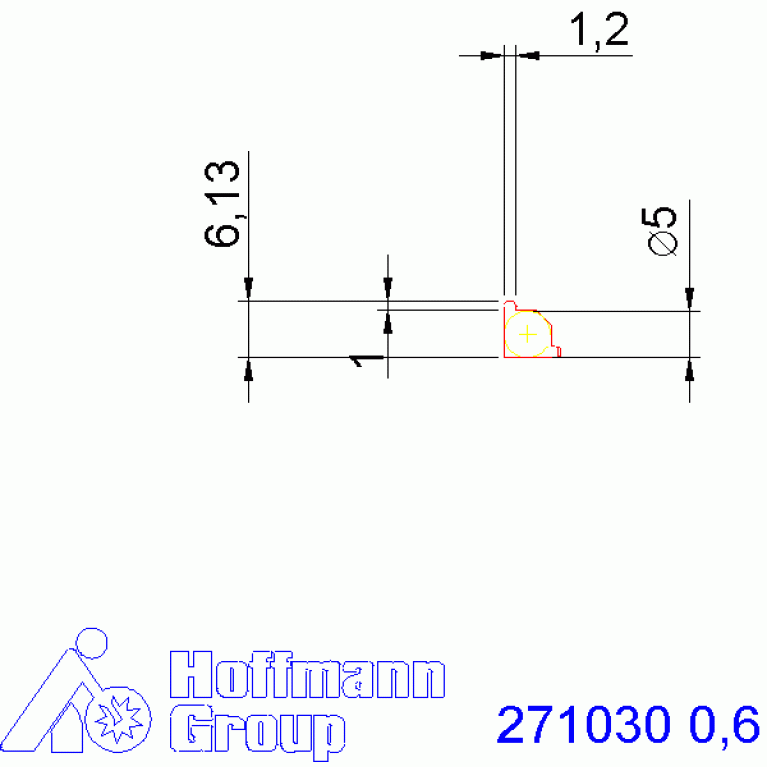

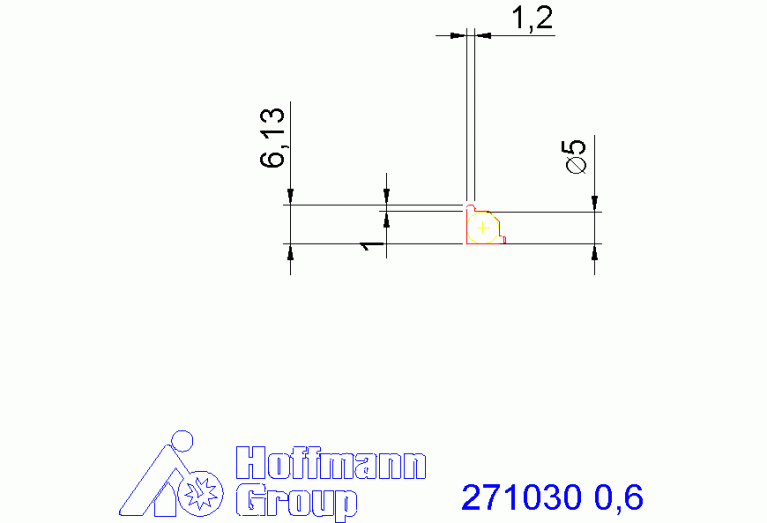

CW Cutting width

1.2 mm

Delivery state valid from

1/11/2017

DIN

HOG-RIRI9393XX

FamilyProducts

GARANT Partial profile insert for DIN 7993, internal, right-

GAN Insert rake angle

13 Degree

GRDMFG Grade manufacturers designation

HB7010

IC Inscribed circle diameter

5 mm

IH Insert hand

R - Right

Interface codes

J6 /

ISYC Subclass

202-05 - Insert, two cutting edges for profiling and partial threading

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-RIRI9393XX

Name Identifying order number

271030 0,6

NOF Flute count

NT Tooth count

PDPT Profile depth insert

1 mm

PDX Profile distance X

0.6 mm

PFS Profile form

RER Corner radius right hand

0.6 mm

S1 Insert thickness total

1.85 mm

TPT Thread profile type

T - Partial profile

TTP Thread type

I - Internal thread

Working process

DGI - Thread turning, internal

WT Weight of item

0.001 kg
