Главная Каталог продукции Toolunited 16 302-05 - Stepped countersinking tool / tapered countersinking tool 150132 10

150132 10

Артикул: 150132 10

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

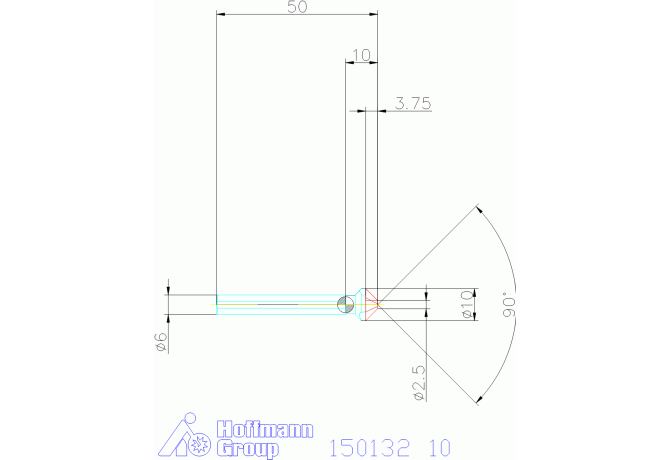

DC Cutting diameter minimum

2.5 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

10 mm

Delivery state valid from

1/11/2017

DIN

ZYL00600105

FamilyProducts

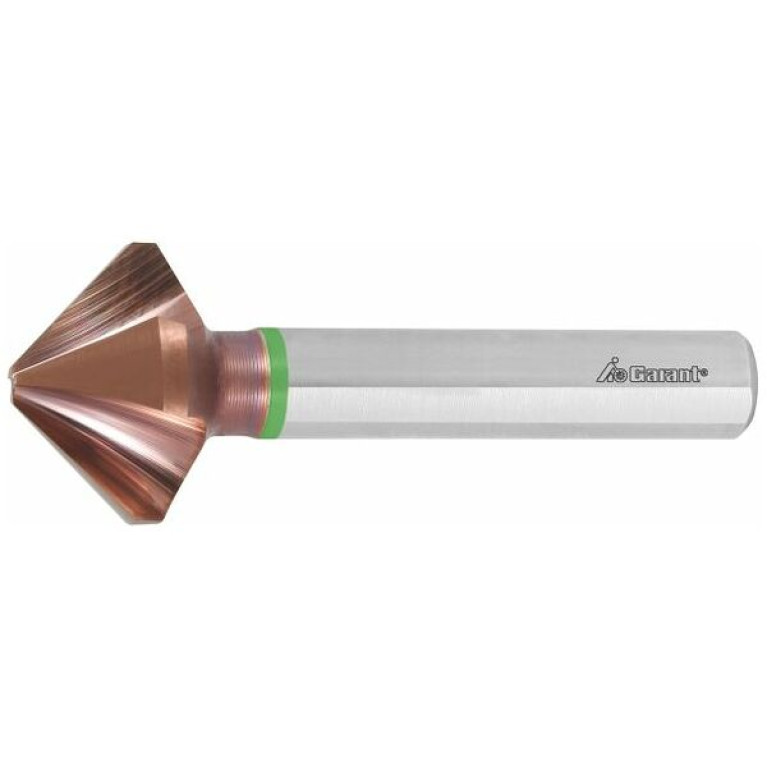

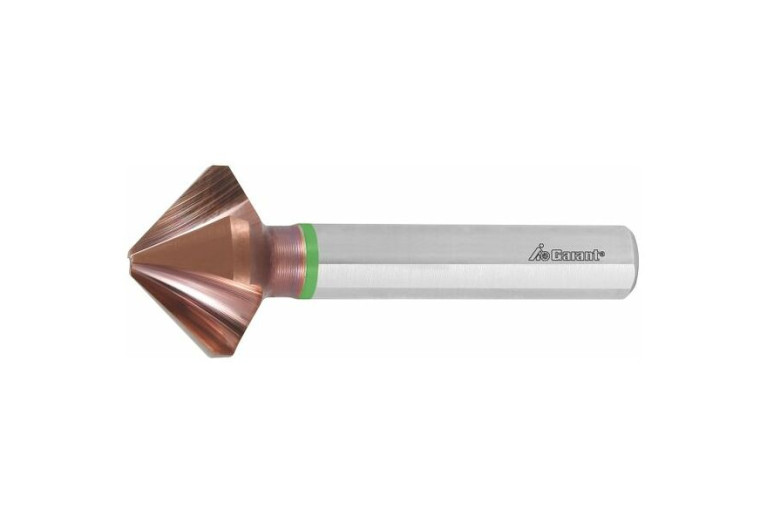

GARANT High-precision countersink with 3 drive flats 90°

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GPP Guide pilot

0 - Without pilot

GRDMFG Grade manufacturers designation

HSS

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-05 - Stepped countersinking tool / tapered countersinking tool

LCF Length chip flute

6.7 mm

LF Functional length

50 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

10 mm

LS Shank length

40 mm

LU Usable length

3.75 mm

Name Identifying order number

150132 10

NOF Flute count

OAL Overall length

50 mm

PHD Premachined hole diameter

2.5 mm

SIG Point angle 1st step

90 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN335

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.011 kg
