Главная Каталог продукции Toolunited 16 302-05 - Stepped countersinking tool / tapered countersinking tool 150130 31

150130 31

150130 31 150130 31 150130 31

150130 31

Hoffmann Group
Артикул: 150130 31
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit

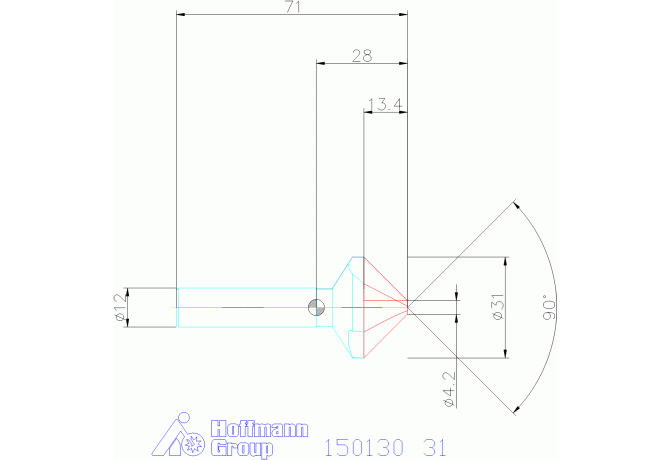

DC Cutting diameter minimum
4.2 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
31 mm
Delivery state valid from
1/11/2017
DIN
ZYL01200105
FamilyProducts

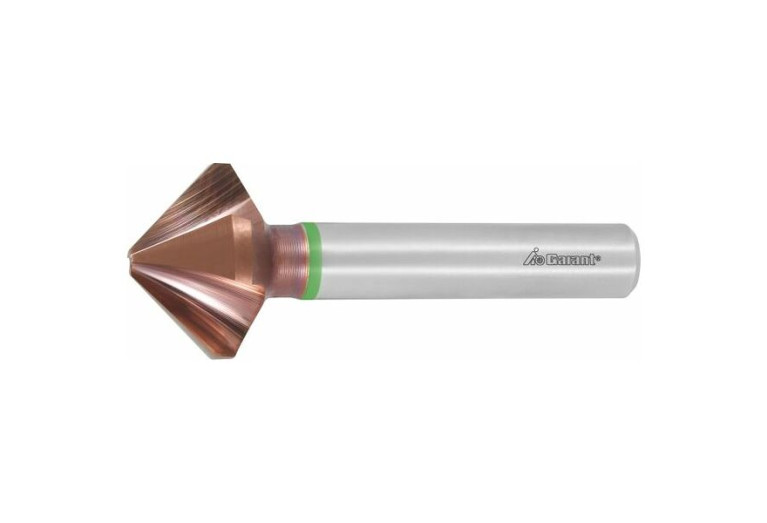

GARANT High-precision countersink 90°
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GPP Guide pilot
0 - Without pilot
GRDMFG Grade manufacturers designation
HSS
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-05 - Stepped countersinking tool / tapered countersinking tool
LCF Length chip flute
22 mm
LF Functional length
71 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200105
LPR Protruding length
28 mm
LS Shank length
43 mm
LU Usable length
13.4 mm
Name Identifying order number
150130 31
NOF Flute count
3
OAL Overall length
71 mm
PHD Premachined hole diameter
4.2 mm
SIG Point angle 1st step
90 Degree
STDLET Standard letter to the standard number
C
STDNO Standard
DIN335
TCDCONMS ISO-tolerance class shank diameter
h9
Working process
BVB - Drilling
WT Weight of item
0.086 kg
