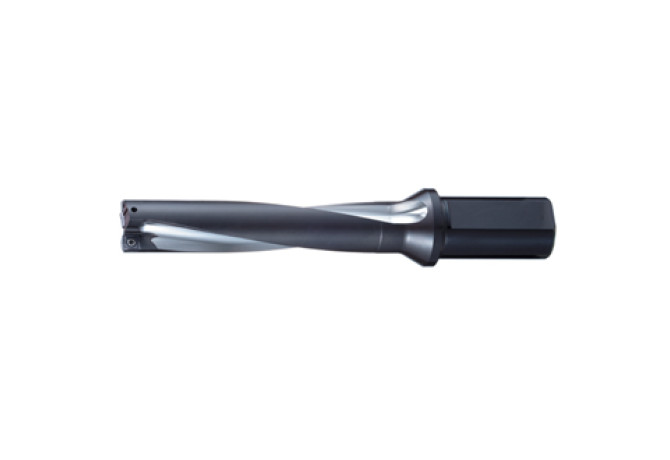

Главная Каталог продукции Toolunited 16 306-01 - Twist drill for indexable inserts 7803257

7803257

7803257

OSG

Артикул: 7803257

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

8 Degree

A2B Clearance angle major Pos. B

8 Degree

ANGLE BOND Angle bond

24.8 Degree

B1A Cutting edge length Pos. A

12.57 mm

B1B Cutting edge length Pos. B

12.57 mm

B3A Inscribed circle diameter Pos. A

12.57 mm

B3B Inscribed circle diameter Pos. B

12.57 mm

BD Body diameter 1st step

40 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

5 mm

C1B Insert thickness Pos. B

5 mm

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

OSG

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

1 mm

D1B Corner radius Pos. B

1 mm

DC Cutting diameter minimum

41 mm

DCONMSLD Mounting diameter lower dimension

-0.016 mm

DCONMSUD Mounting diameter upper dimension

0 mm

DCP Data chip provision

0 - Without data chip

DF Flange diameter

56 mm

DIN

ZYL04001115

FamilyProducts

OSG P3D P3D P3D4100FS40M12

FHA Flute helix angle

12 Degree

FHH Flute helix hand

R - Hand of helix right

GEP Guide element property

0 - Without guide elements

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LCF Length chip flute

153 mm

LENGTH BOND Length bond

28.45 mm

LOC-03 CCFMS Connection code form

11

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04001115

LPR Protruding length

158 mm

LS Shank length

70 mm

LU Usable length

123 mm

Name Identifying order number

7803257

NOF Flute count

2

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

228 mm

PL Point length

0 mm

SIG Point angle 1st step

180 Degree

TCDCONMS ISO-tolerance class shank diameter

h6

Working process

No working processes available

WT Weight of item

1.63 kg

Наличие погрешности (ADJBY) / Adjustment property (ADJBY)

0 - Adjustment not possible
