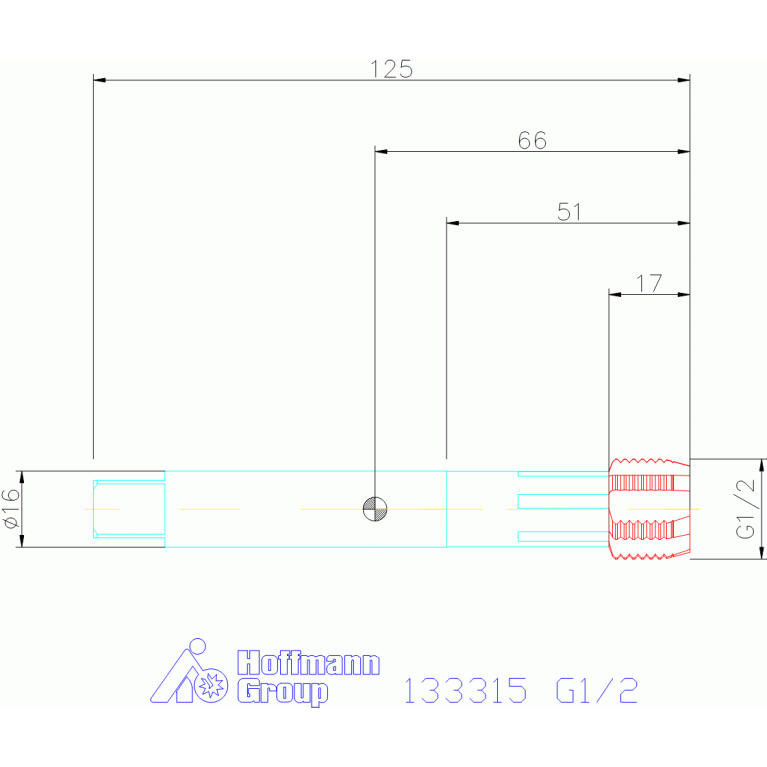

133315 G1/2
133315 G1/2
Артикул:
133315 G1/2
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01602105
FamilyProducts
Machine tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602105
Name Identifying order number
133315 G1/2
NOF Flute count
5
OAL Overall length
125 mm
PLG Plug style
C - Kappa r 15°
TD Thread diameter
20.96 mm
TDFR Thread diameter nominal fraction
1/2 in
THFT Thread form type
G
TPI Threads per inch
14 1/in
Working process
BG - Tapping
