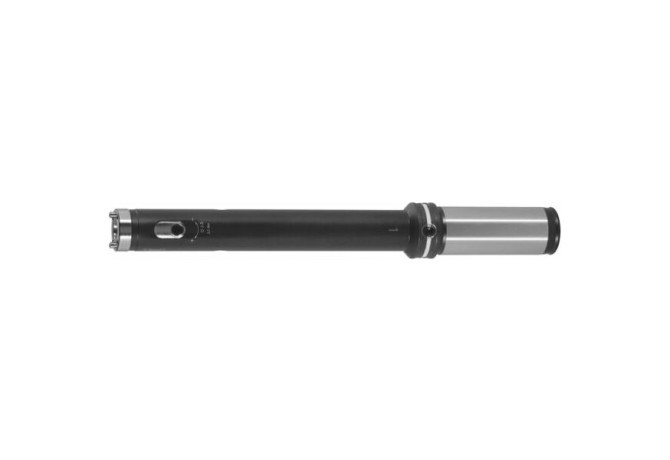

Главная Каталог продукции Toolunited 15 312-00 - Reamer with indexable inserts unspecified 239940 18-19,99

239940 18-19,99

Артикул: 239940 18-19,99

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

18 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

19.99 mm

Delivery state valid from

1/11/2017

DIN

ZYL02500115

FamilyProducts

KOMET DIHART Reamax® TS holder DAH Zero®

Interface codes

J6 /

ISYC Subclass

312-00 - Reamer with indexable inserts unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

LPR Protruding length

135 mm

LS Shank length

50 mm

Name Identifying order number

239940 18-19,99

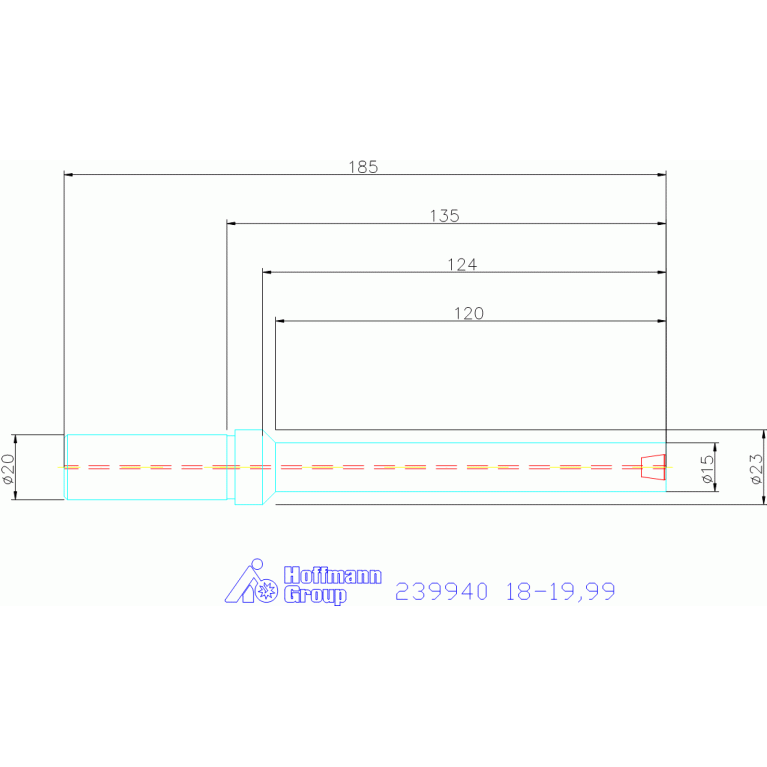

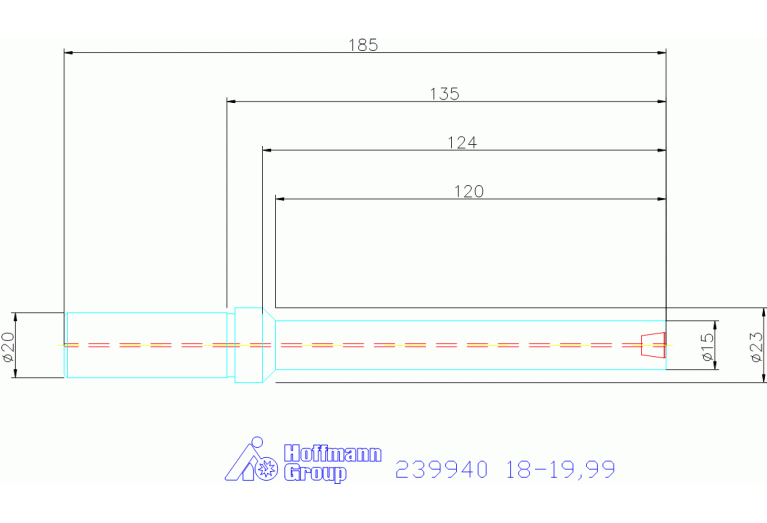

OAL Overall length

185 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

REI - Cylindrical reaming

WT Weight of item

0.305 kg
