Главная Каталог продукции Toolunited 15 305-02 - Bridge tool adapter 238372 50

238372 50

Артикул: 238372 50

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

Delivery state valid from

1/11/2017

DIN

ABS03200115

FamilyProducts

KOMET Exchange bridge for M03Speed

Interface codes

J6 /

ISYC Subclass

305-02 - Bridge tool adapter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ABS KOMET ABS connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS03200115

Name Identifying order number

238372 50

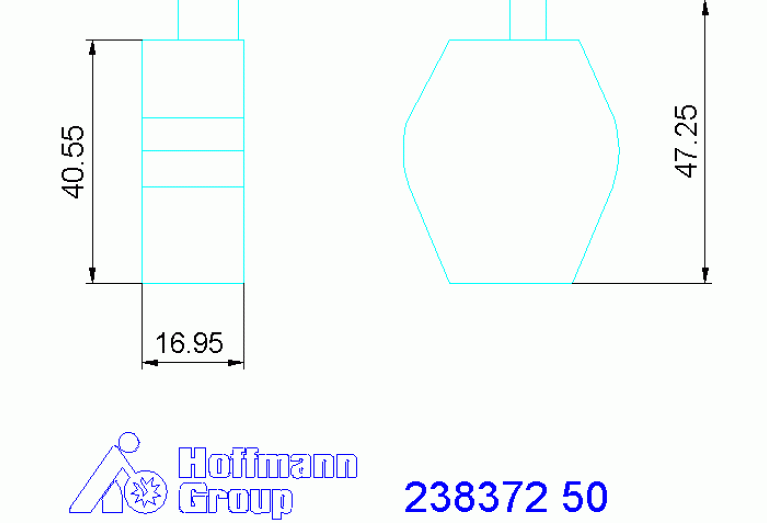

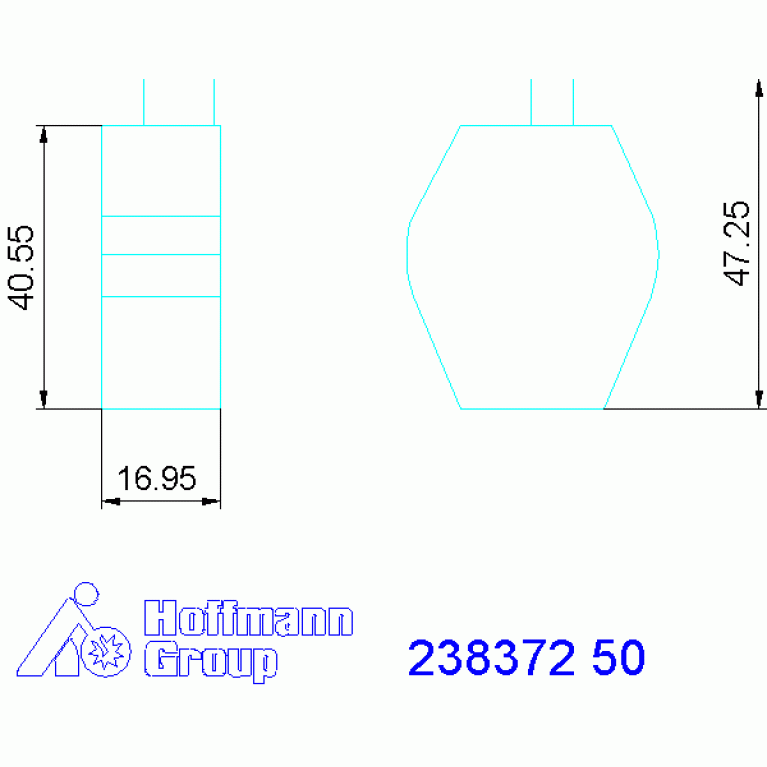

OAL Overall length

47.25 mm

RPMX Rotational speed maximum

24000 1/min

Working process

No working processes available

WT Weight of item

0.08 kg
