Главная Каталог продукции Toolunited 15 403-01 - Driven tool unit - straight design TJS 20K HSK A63L

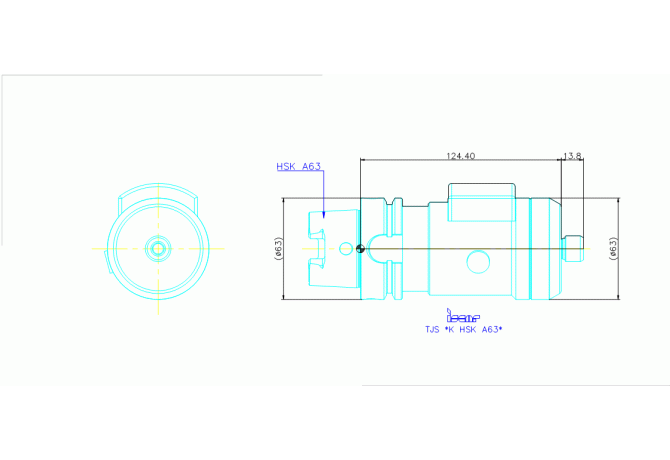

TJS 20K HSK A63L

Артикул: TJS 20K HSK A63L

В наличии

В корзину

Описание

Характеристики

BDX Body diameter maximum

63 mm

CCFOP Connection code form output side

CCTOP Connection code type output side

SZD

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CONARWS Connection arrangement workpiece side

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCOP Connection size code output side

0110

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/3/2016

DIN

HSK06300195

DIN CSW1

SZD01100295

FamilyProducts

Coolant Driven High Speed Compact Spindle, HSK Shank

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

403-01 - Driven tool unit - straight design

LF Functional length

138 mm

LOC-01-Connection-codes

J41 / J441 - Trennstellenkodierung, Abtrieb 1

LOC-01-DIN

SZD01100295

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - Trennstellenkodierung, maschinenseitig

LOC-03-DIN

HSK06300195

LPR Protruding length

138 mm

Name Identifying order number

TJS 20K HSK A63L

RPMX Rotational speed maximum

40000 1/min

Working process

No working processes available

WT Weight of item

1.6 kg
