Главная Каталог продукции Toolunited 15 201-09 - Octogonal insert OFHR 070410SN-33 GM246

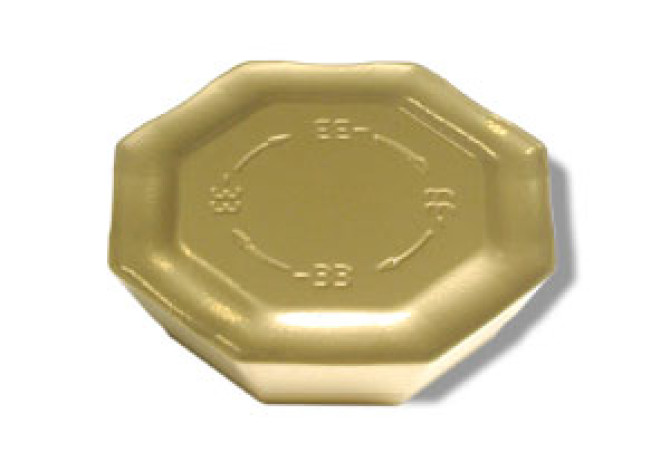

OFHR 070410SN-33 GM246

Артикул: OFHR 070410SN-33 GM246

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

BS Wiper edge length

1.5 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

DIN

OF0704101R

EPSR Insert included angle

135 Degree

FamilyProducts

carbide milling insert

GRD2ND Standard designation of the grade 2nd application

HC-M40

GRDMFG Grade manufacturers designation

GM246

GRDPRIO Standard designation of the grade main application

HC-P40

IC Inscribed circle diameter

18.18 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF0704101R

Name Identifying order number

OFHR 070410SN-33 GM246

RE Corner radius

1 mm

S Insert thickness

4.97 mm

S1 Insert thickness total

4.97 mm

STDDES Standard designation

OFHR070410SN

TCINS Tolerance class insert

Working process

No working processes available
