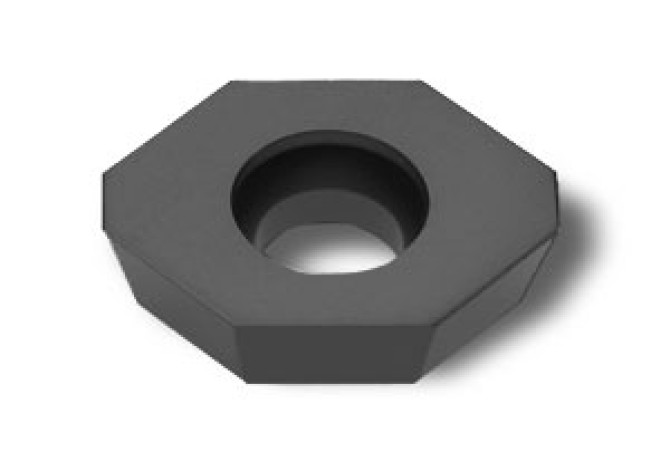

ODGX 1204ADSN SR226+

Артикул: ODGX 1204ADSN SR226+

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

7.17 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

DIN

OD1204AD4N

EPSR Insert included angle

135 Degree

FamilyProducts

carbide milling insert

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRD3RD Standard designation of the grade 3rd application

HC-M25

GRDMFG Grade manufacturers designation

SR226+

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

7.17 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OD1204AD4N

Name Identifying order number

ODGX 1204ADSN SR226+

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

ODGX1204ADSN

TCINS Tolerance class insert

Working process

No working processes available
