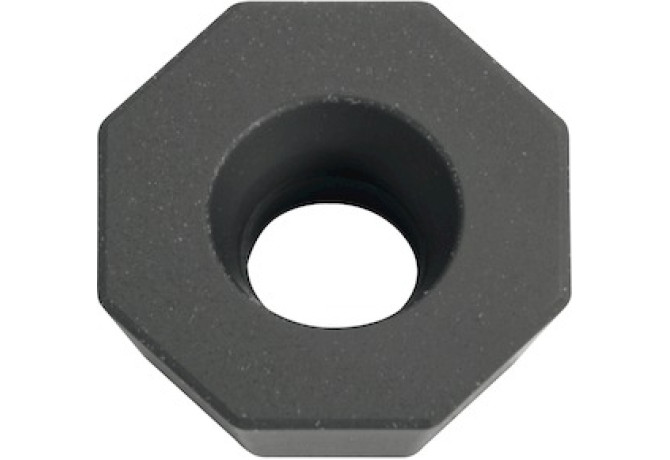

Главная Каталог продукции Toolunited 15 201-09 - Octogonal insert 222430 4

222430 4

Артикул: 222430 4

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

OD0404083N

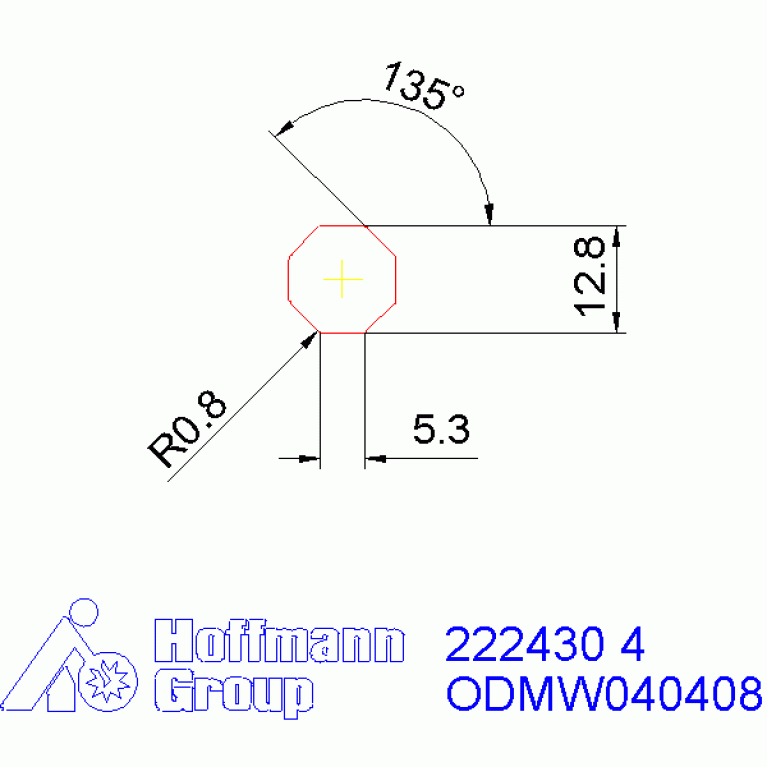

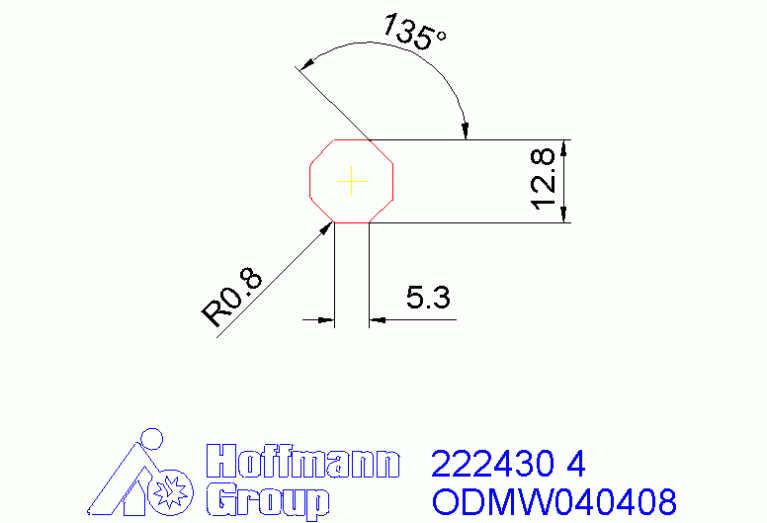

EPSR Insert included angle

135 Degree

FamilyProducts

ODMW... SN

GRDMFG Grade manufacturers designation

SP6519

IC Inscribed circle diameter

12.8 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

5.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OD0404083N

Name Identifying order number

222430 4

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

ODMW040408SN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.006 kg
