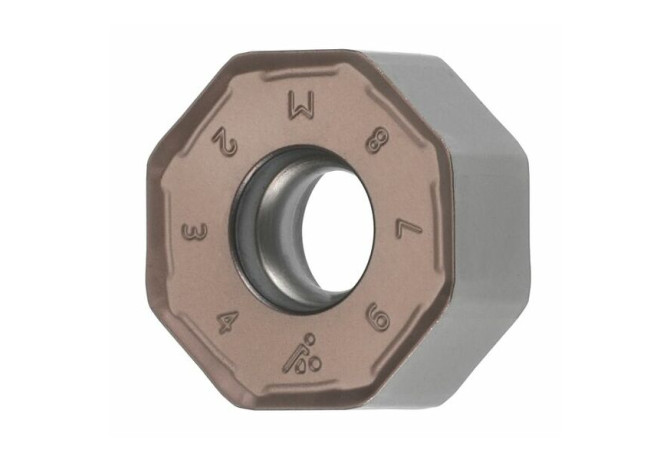

Главная Каталог продукции Toolunited 15 201-09 - Octogonal insert 213437 GG

213437 GG

Артикул: 213437 GG

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

TiAlSiN super multi

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

ON05T6083R

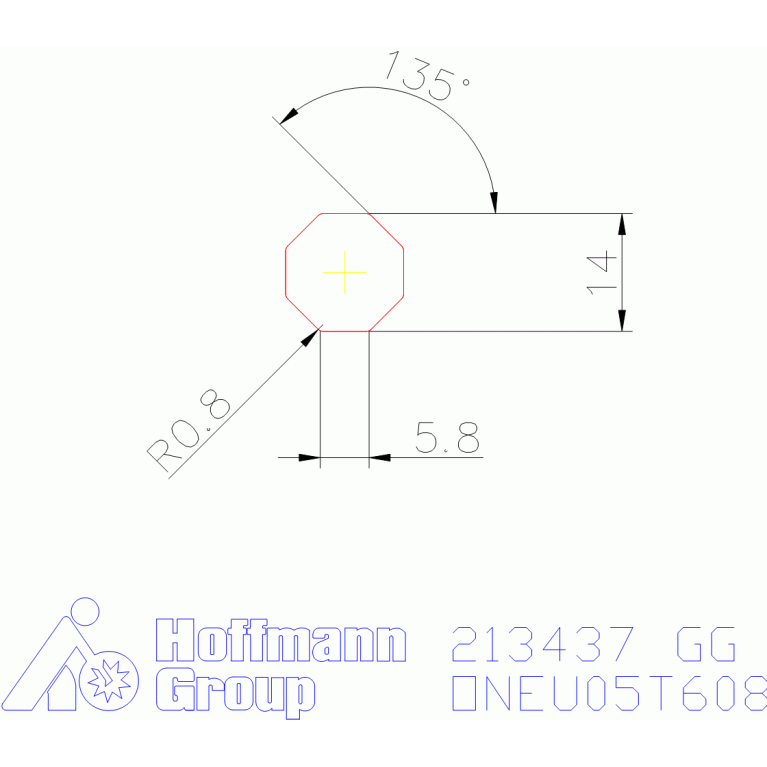

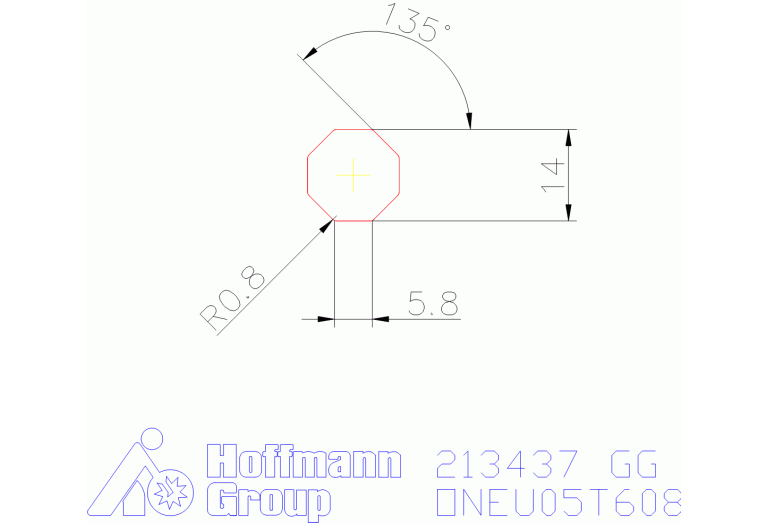

EPSR Insert included angle

135 Degree

FamilyProducts

ONMU 05T6 ANER

GRDMFG Grade manufacturers designation

HB7730

IC Inscribed circle diameter

14 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

5.8 mm

LE Cutting edge effective length

5.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ON05T6083R

Name Identifying order number

213437 GG

RE Corner radius

0.8 mm

S Insert thickness

6.1 mm

STDDES Standard designation

ONEU05T608

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.011 kg
