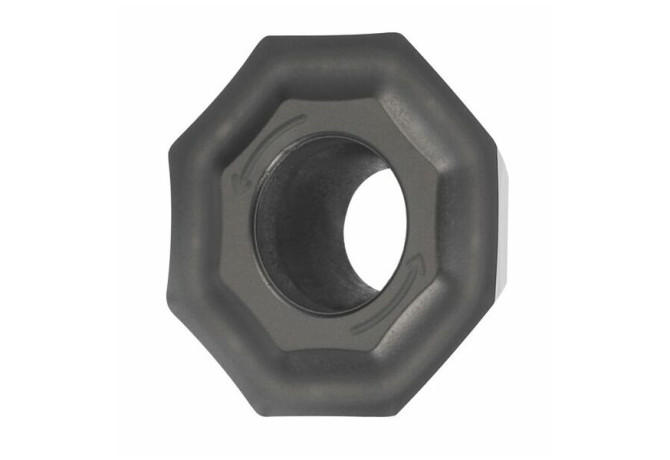

Главная Каталог продукции Toolunited 15 201-09 - Octogonal insert 213361 ALU

213361 ALU

Артикул: 213361 ALU

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

26 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

OF0504053R

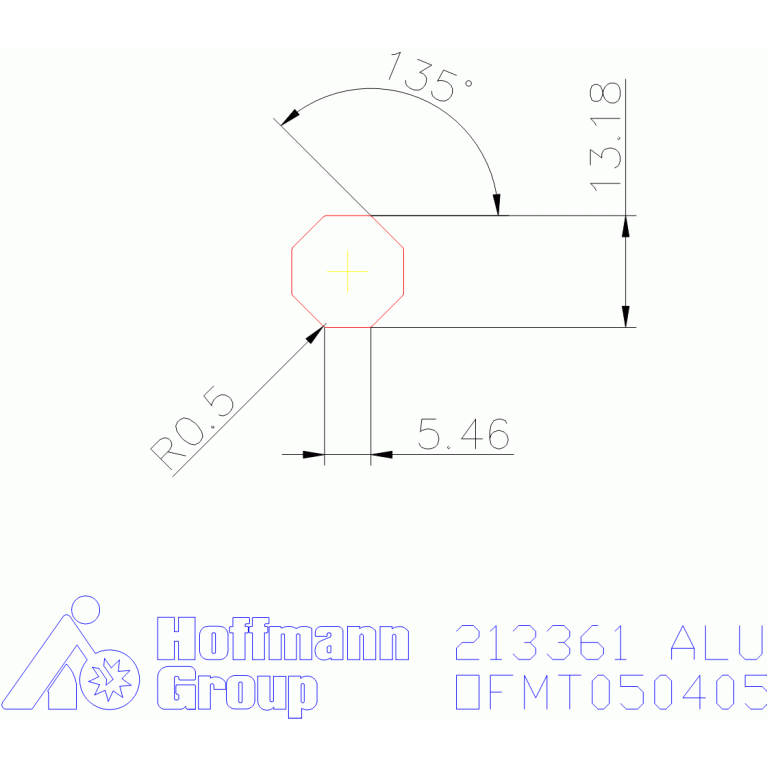

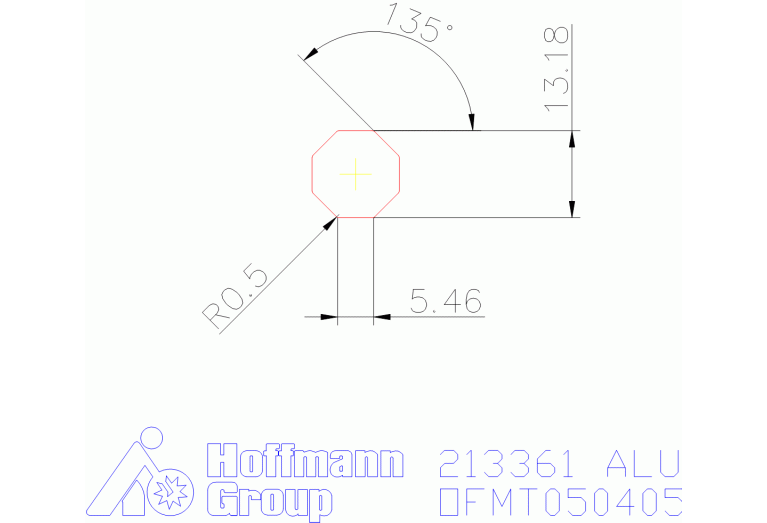

EPSR Insert included angle

135 Degree

FamilyProducts

OFMT 050405 diamond coated

GRDMFG Grade manufacturers designation

HB7810

IC Inscribed circle diameter

13.18 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

5.47 mm

LE Cutting edge effective length

1.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF0504053R

Name Identifying order number

213361 ALU

RE Corner radius

0.5 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

OFMT050405

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.005 kg
