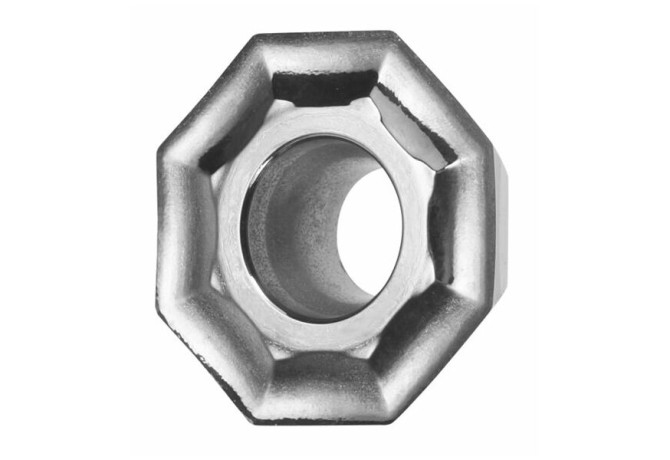

Главная Каталог продукции Toolunited 15 201-09 - Octogonal insert 213358 ALU

213358 ALU

Артикул: 213358 ALU

В наличии

В корзину

Описание

Характеристики

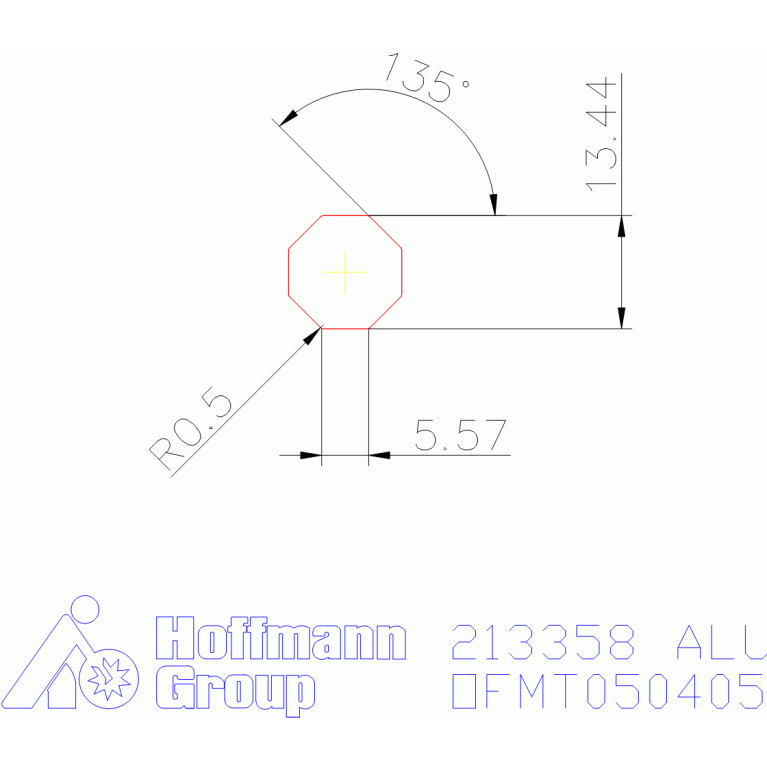

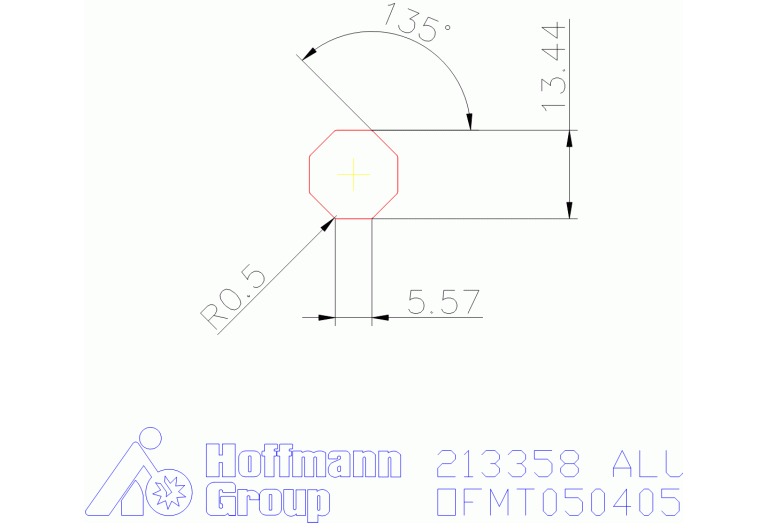

AN Clearance angle major

25 Degree

CHW Corner chamfer width

1 mm

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

OF0504053N

EPSR Insert included angle

135 Degree

FamilyProducts

OFMT 050405 TN

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

HU7815

IC Inscribed circle diameter

13.44 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

5.5 mm

LE Cutting edge effective length

5.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF0504053N

Name Identifying order number

213358 ALU

RE Corner radius

0.5 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

OFMT050405TN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.006 kg
