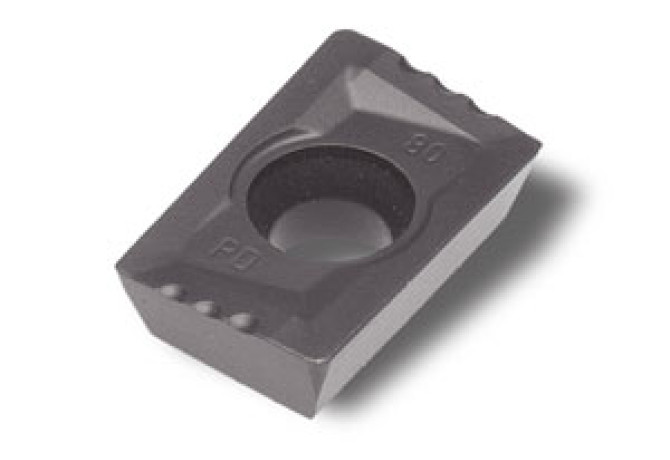

LDFW 1504PDSR SR226+

Артикул: LDFW 1504PDSR SR226+

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

ANN Clearance angle minor

15 Degree

BS Wiper edge length

1.2 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

EPSR Insert included angle

88 Degree

FamilyProducts

carbide milling insert

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRD3RD Standard designation of the grade 3rd application

HC-M25

GRDMFG Grade manufacturers designation

SR226+

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

15 mm

Name Identifying order number

LDFW 1504PDSR SR226+

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

W1 Insert width

9.52 mm

Working process

No working processes available
