Главная Каталог продукции Toolunited 15 201-04 - Rectangular insert 288932 6R

288932 6R

Артикул: 288932 6R

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

LN3019404N

EPSR Insert included angle

90 Degree

FamilyProducts

LNUX 301940 NL40+ 6R STELLRAM

GRDMFG Grade manufacturers designation

NL40+

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

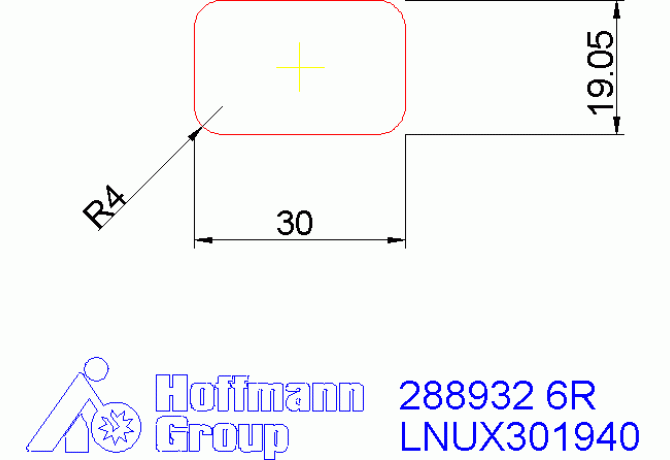

L Cutting edge length

30 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LN3019404N

Name Identifying order number

288932 6R

RE Corner radius

4 mm

S Insert thickness

12 mm

STDDES Standard designation

LNUX301940

TCE Tipped cutting edge code

TCINS Tolerance class insert

U - Not treated

W1 Insert width

19.05 mm

Working process

No working processes available

WT Weight of item

0.084 kg
