Главная Каталог продукции Toolunited 15 201-04 - Rectangular insert 228220 8

228220 8

Артикул: 228220 8

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

LN1245043N

EPSR Insert included angle

90 Degree

FamilyProducts

LNEU PR0725 KYOCERA

GRDMFG Grade manufacturers designation

PR0725

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

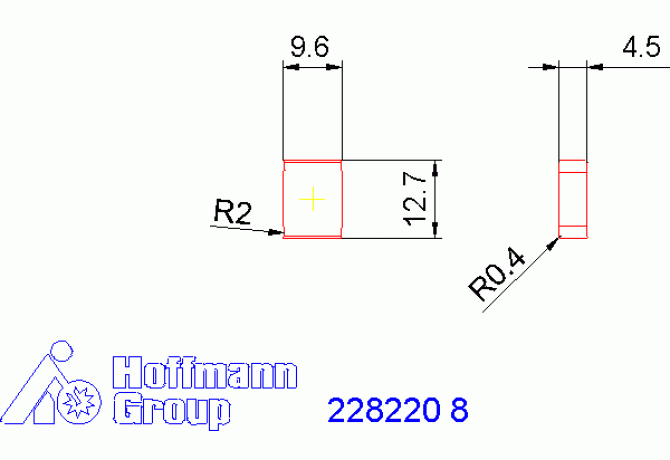

L Cutting edge length

9.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LN1245043N

Name Identifying order number

228220 8

RE Corner radius

0.4 mm

S Insert thickness

4.5 mm

STDDES Standard designation

LNEU124504

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

12.7 mm

Working process

No working processes available

WT Weight of item

0.007 kg
