213398 ST1400

Артикул: 213398 ST1400

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

HN0805AN4N

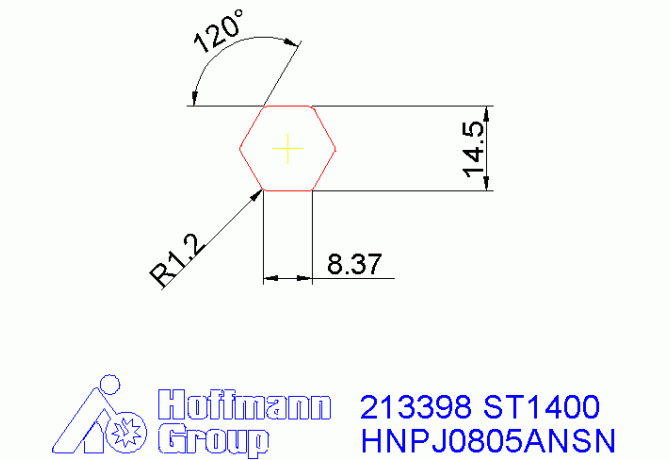

EPSR Insert included angle

120 Degree

FamilyProducts

HNPJ 0805 ANSN HB 7735 GARANT

GRDMFG Grade manufacturers designation

HB7735

IC Inscribed circle diameter

14.5 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-08 - Hexagonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

7.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

HN0805AN4N

Name Identifying order number

213398 ST1400

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

STDDES Standard designation

HNPJ0805AN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0128 kg
