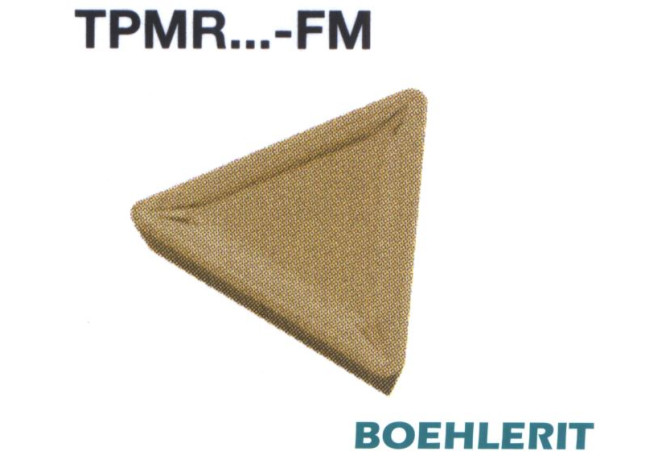

TPMR110304-FM R645

Артикул: TPMR110304-FM R645

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiC/TiCN

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

002

DIN

TP1103 1N

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular style turning insert

GRD2ND Standard designation of the grade 2nd application

M30-M45

GRDMFG Grade manufacturers designation

R645

GRDPRIO Standard designation of the grade main application

P30-P45

IC Inscribed circle diameter

6.35 mm

ID Technical product number

TPMR110304-FM R645

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103 1N

Materials

P,M

Name Identifying order number

TPMR110304-FM R645

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPMR110304

STDDESAnsi Standard designation ANSI

TPMR221

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning
