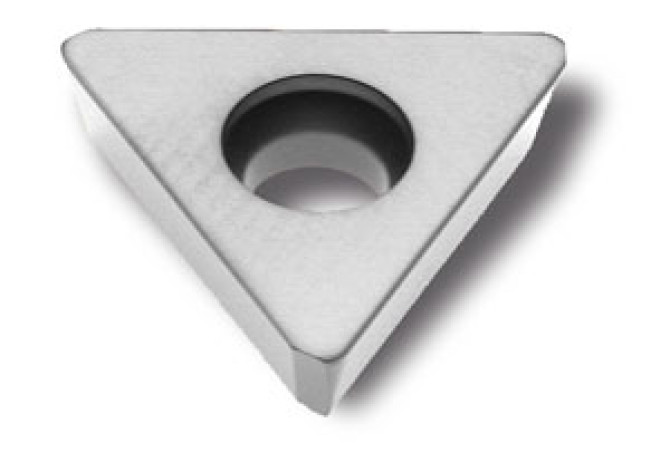

TPKW 16T3PPSR S26T

Артикул: TPKW 16T3PPSR S26T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

1.4 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

CHW Corner chamfer width

1.4 mm

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

TP16T3PP4R

EPSR Insert included angle

60 Degree

FamilyProducts

carbide milling insert

GRDMFG Grade manufacturers designation

S26T

GRDPRIO Standard designation of the grade main application

HW-P20

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

KCH Corner chamfer angle

30 Degree

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

15.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP16T3PP4R

Name Identifying order number

TPKW 16T3PPSR S26T

RE Corner radius

1.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TPKW16T3PPSR

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
