Главная Каталог продукции Toolunited 15 201-01 - Triangle insert TNMP160404 K313

TNMP160404 K313

Артикул: 1161108

В наличии

В корзину

Описание

Характеристики

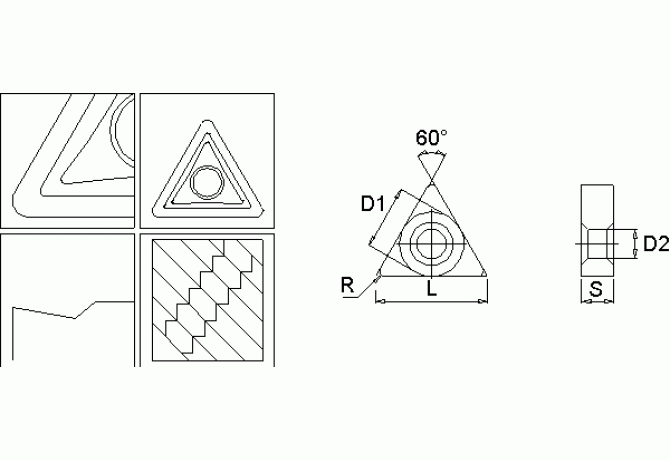

AN Clearance angle major

0 Degree

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

1/4/2011

DIN

KH-WP KL TNMP1604

EPSR Insert included angle

60 Degree

FamilyProducts

Kenloc Insert

GRD2ND Standard designation of the grade 2nd application

HW-S20

GRD3RD Standard designation of the grade 3rd application

HW-S10

GRDMFG Grade manufacturers designation

K313

GRDPRIO Standard designation of the grade main application

HW-K15

IC Inscribed circle diameter

9.525 mm

ID Technical product number

1161108

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

KCH Corner chamfer angle

60 Degree

L Cutting edge length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP KL TNMP1604

Name Identifying order number

TNMP160404 K313

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNMP160404

STDDESAnsi Standard designation ANSI

TNMP331

TCINS Tolerance class insert

Working process

No working processes available
