Главная Каталог продукции Toolunited 15 201-01 - Triangle insert TNGP160408 KC5010

TNGP160408 KC5010

Артикул: 1868463

В наличии

В корзину

Описание

Характеристики

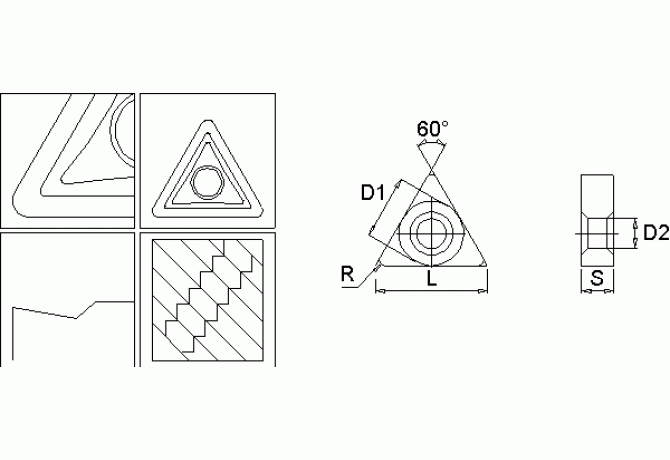

AN Clearance angle major

0 Degree

COATN Coating / Покрытие

PVD

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

1/27/2013

DIN

KH-WP KL TNGP1604

EPSR Insert included angle

60 Degree

FamilyProducts

Kenloc Insert

GRD2ND Standard designation of the grade 2nd application

HC-P15

GRD3RD Standard designation of the grade 3rd application

HC-N20

GRDMFG Grade manufacturers designation

KC5010

GRDPRIO Standard designation of the grade main application

HC-K15

IC Inscribed circle diameter

9.525 mm

ID Technical product number

1868463

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

KCH Corner chamfer angle

60 Degree

L Cutting edge length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP KL TNGP1604

Materials

Name Identifying order number

TNGP160408 KC5010

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNGP160408

STDDESAnsi Standard designation ANSI

TNGP332

TCINS Tolerance class insert

Working process

No working processes available
