Главная Каталог продукции Toolunited 15 201-01 - Triangle insert TCMT16T304-MP LCP15T

TCMT16T304-MP LCP15T

Артикул: TCMT16T304-MP LCP15T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

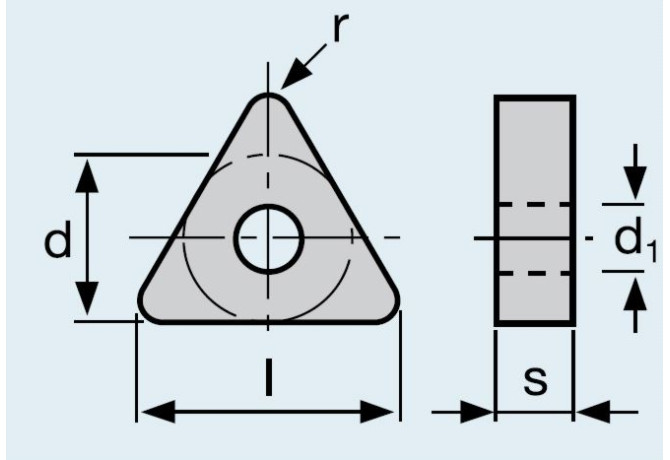

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/25/2012

DIN

TC16T3 3N

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular style turning insert

GRD2ND Standard designation of the grade 2nd application

HC-K15

GRDMFG Grade manufacturers designation

LCP15T

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

9.52 mm

ID Technical product number

TCMT16T304-MP LCP15T

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3 3N

Materials

Name Identifying order number

TCMT16T304-MP LCP15T

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCMT16T304

STDDESAnsi Standard designation ANSI

TCMT3(2.5)1

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
