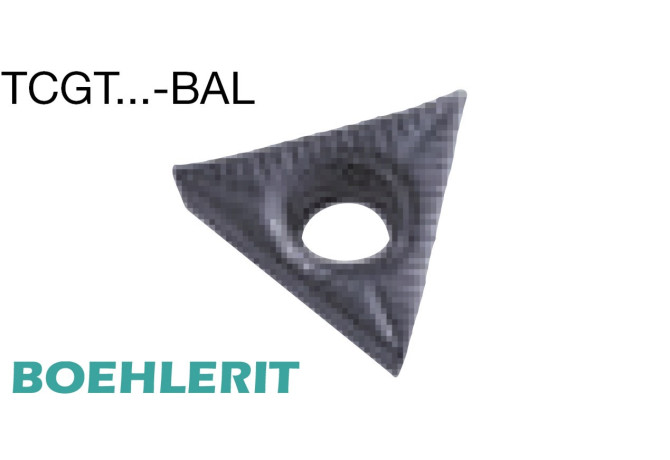

TCGT16T304-BAL R2414

Артикул: TCGT16T304-BAL R2414

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BAL

COATN Coating / Покрытие

TiAIN

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

005

DIN

TC16T3 3N

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular style turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M10

GRDMFG Grade manufacturers designation

R2414

GRDPRIO Standard designation of the grade main application

HC-K10

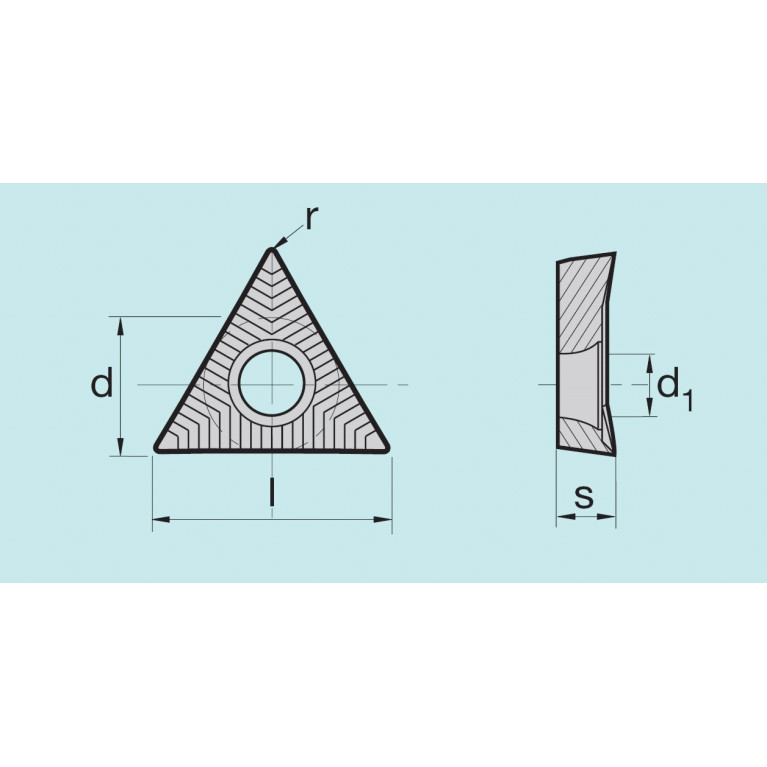

IC Inscribed circle diameter

9.525 mm

ID Technical product number

TCGT16T304-BAL R2414

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3 3N

Materials

M,K,N

Name Identifying order number

TCGT16T304-BAL R2414

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCGT16T304

STDDESAnsi Standard designation ANSI

TCGT3(1.5)1

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDB - External and internal turning,DDI - Internal turning
