Главная Каталог продукции Toolunited 15 201-01 - Triangle insert TCGT16T302LF KC5010

TCGT16T302LF KC5010

Артикул: 1522947

В наличии

В корзину

Описание

Характеристики

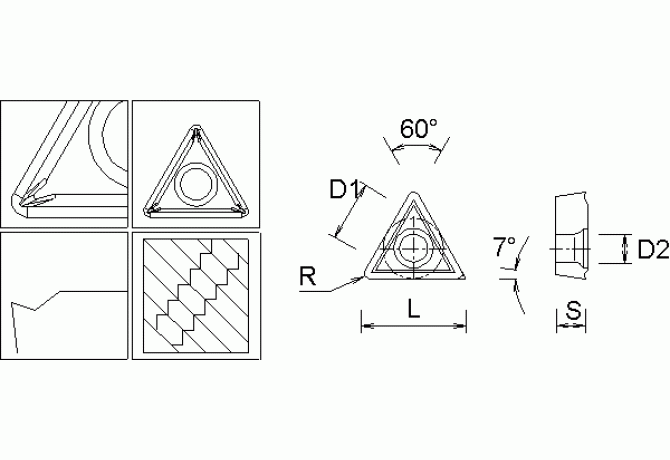

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

PVD

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

1/27/2013

DIN

KH-WP SC TCGT16T3

EPSR Insert included angle

60 Degree

FamilyProducts

Screw On Insert

GRD2ND Standard designation of the grade 2nd application

HC-P15

GRD3RD Standard designation of the grade 3rd application

HC-N20

GRDMFG Grade manufacturers designation

KC5010

GRDPRIO Standard designation of the grade main application

HC-K15

IC Inscribed circle diameter

9.525 mm

ID Technical product number

1522947

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

KCH Corner chamfer angle

60 Degree

L Cutting edge length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP SC TCGT16T3

Name Identifying order number

TCGT16T302LF KC5010

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCGT16T302LF

STDDESAnsi Standard designation ANSI

TCGT32505LF

TCINS Tolerance class insert

Working process

DDI - Internal turning,DDA - External turning
