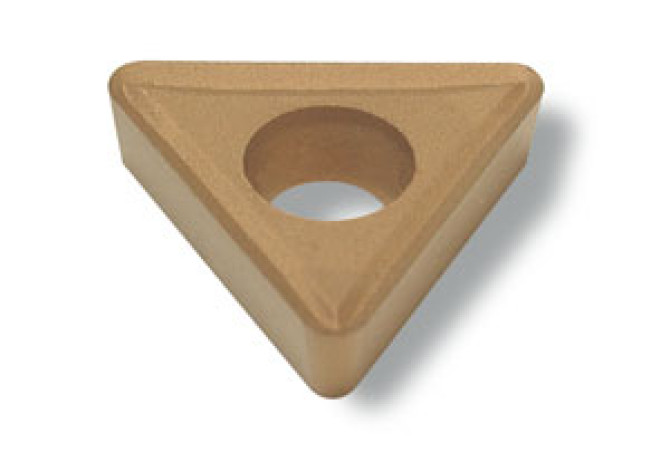

TCGT 16T308FN SM80

Артикул: TCGT 16T308FN SM80

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

TC16T3083N

EPSR Insert included angle

60 Degree

FamilyProducts

Steelmaster turning insert

GRDMFG Grade manufacturers designation

SM80

GRDPRIO Standard designation of the grade main application

HSS-C

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3083N

Name Identifying order number

TCGT 16T308FN SM80

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCGT16T308FN

STDDESAnsi Standard designation ANSI

TCGT32.52FN

TCINS Tolerance class insert

Working process

No working processes available
