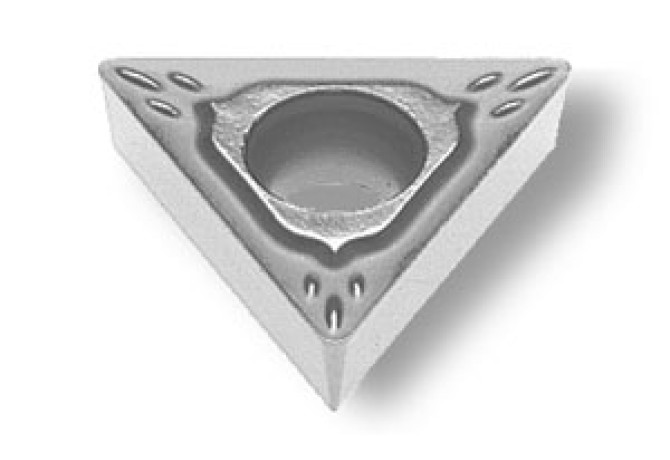

TCGT 16T308EN-SF TCM10

Артикул: TCGT 16T308EN-SF TCM10

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

TC16T3083N

EPSR Insert included angle

60 Degree

FamilyProducts

Cermet turning insert

GRD2ND Standard designation of the grade 2nd application

HT-M10

GRD3RD Standard designation of the grade 3rd application

HT-K10

GRDMFG Grade manufacturers designation

TCM10

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3083N

Materials

P,M,K

Name Identifying order number

TCGT 16T308EN-SF TCM10

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCGT16T308EN

STDDESAnsi Standard designation ANSI

TCGT32.52EN

TCINS Tolerance class insert

Working process

No working processes available
