Главная Каталог продукции Toolunited 15 201-01 - Triangle insert 262735 UNI

262735 UNI

Артикул: 262735 UNI

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

TC16T3083R

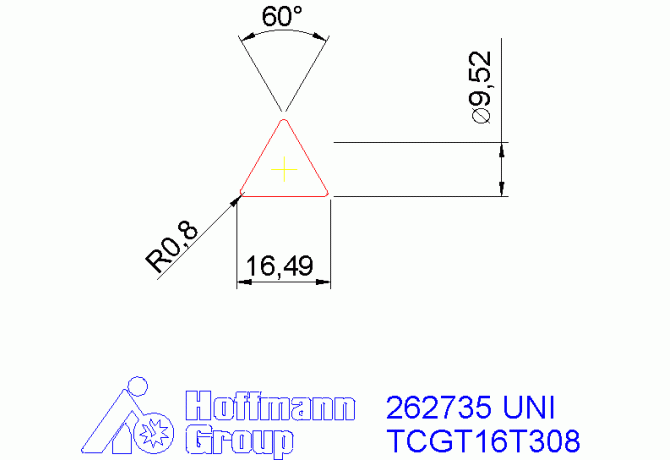

EPSR Insert included angle

60 Degree

FamilyProducts

TCGT 16T308R HB 7035 UNI GARANT

GRDMFG Grade manufacturers designation

HB7035

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LE Cutting edge effective length

5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3083R

Name Identifying order number

262735 UNI

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

STDDES Standard designation

TCGT16T308

STDDESAnsi Standard designation ANSI

TCGT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
