262720 ALU

Артикул: 262720 ALU

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

TC16T3043N

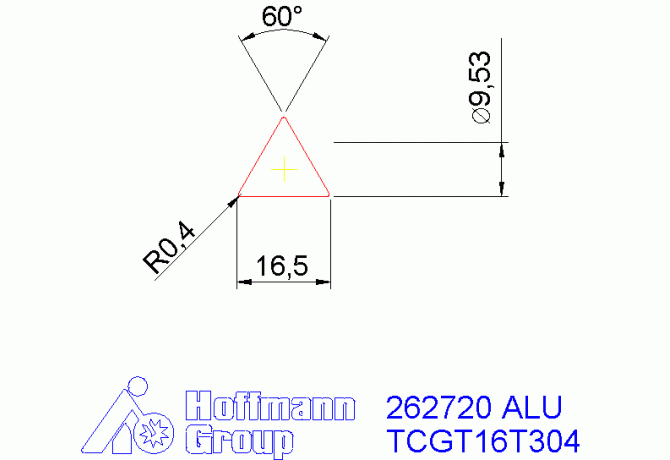

EPSR Insert included angle

60 Degree

FamilyProducts

TCGT 16T304 HU 70AL ALU GARANT

GRDMFG Grade manufacturers designation

HU70AL

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3043N

Name Identifying order number

262720 ALU

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

STDDES Standard designation

TCGT16T304

STDDESAnsi Standard designation ANSI

TCGT32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0052 kg
