262660 ALU

Артикул: 262660 ALU

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

TC1102023N

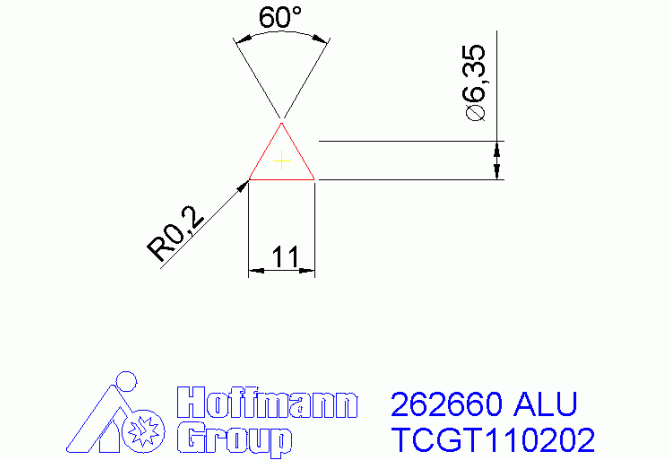

EPSR Insert included angle

60 Degree

FamilyProducts

TCGT 110202 HU 70AL ALU GARANT

GRDMFG Grade manufacturers designation

HU70AL

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102023N

Name Identifying order number

262660 ALU

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

STDDES Standard designation

TCGT110202

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0017 kg
