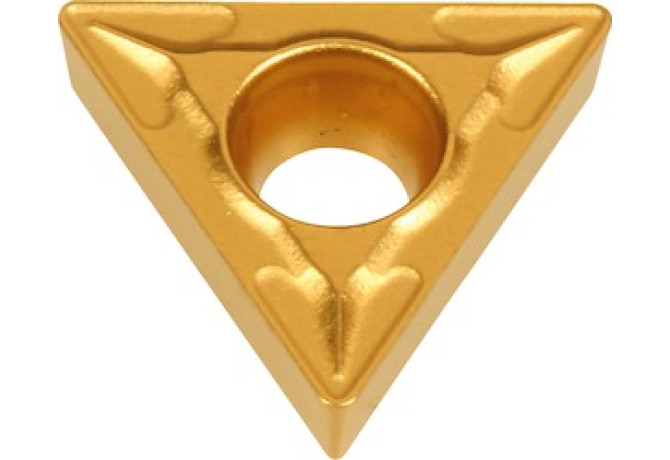

Главная Каталог продукции Toolunited 15 201-01 - Triangle insert 260986 HB7135

260986 HB7135

Артикул: 260986 HB7135

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

TC16T3043N

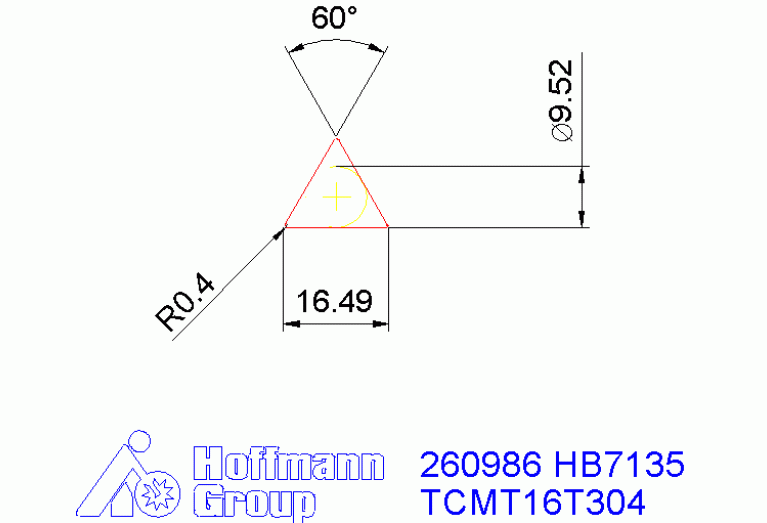

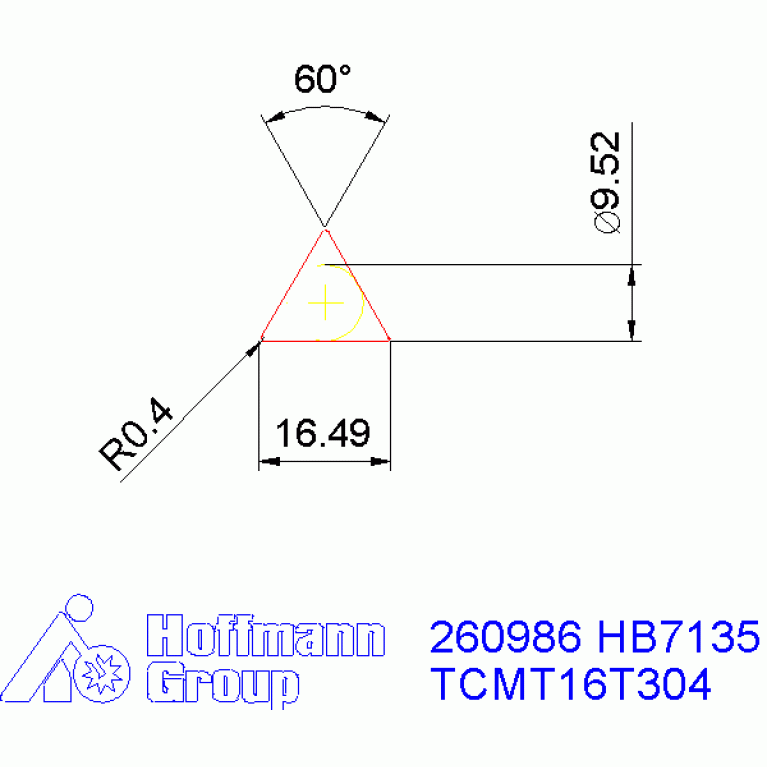

EPSR Insert included angle

60 Degree

FamilyProducts

TC.T 16T304

GRDMFG Grade manufacturers designation

HB7135

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.49 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3043N

Name Identifying order number

260986 HB7135

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

STDDES Standard designation

TCMT16T304

STDDESAnsi Standard designation ANSI

TCMT32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.006 kg
