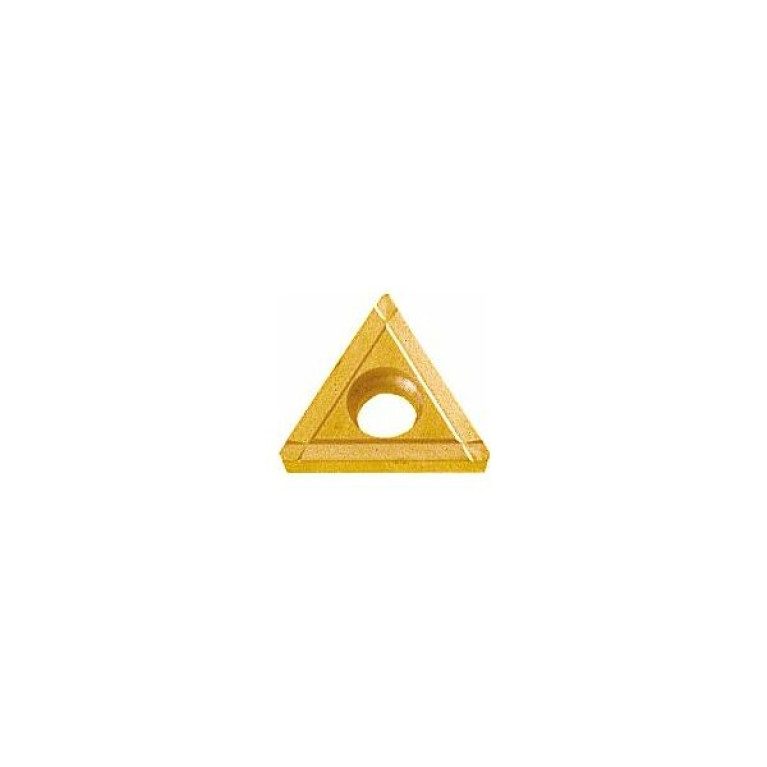

Главная Каталог продукции Toolunited 15 201-01 - Triangle insert 216770 32-050

216770 32-050

Артикул: 216770 32-050

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

ML-TiAlN/TiN

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

TO1604083N

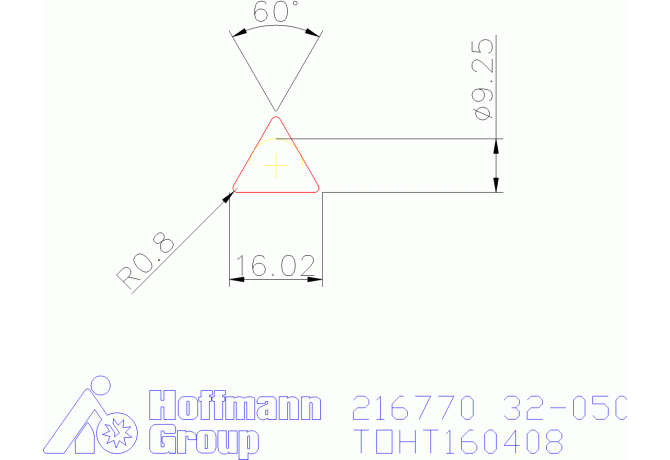

EPSR Insert included angle

60 Degree

FamilyProducts

KOMET Indexable inserts

GRDMFG Grade manufacturers designation

BK8425

IC Inscribed circle diameter

9.25 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

15.3 mm

LE Cutting edge effective length

15.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TO1604083N

Name Identifying order number

216770 32-050

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

STDDES Standard designation

TOHT160408EN

STDDESAnsi Standard designation ANSI

TOHT332EN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.006 kg
