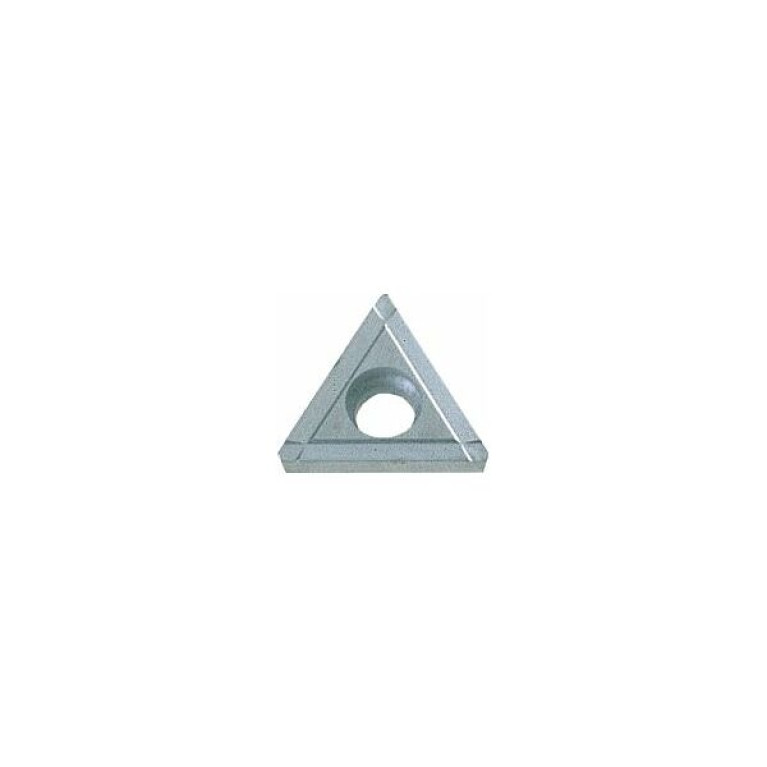

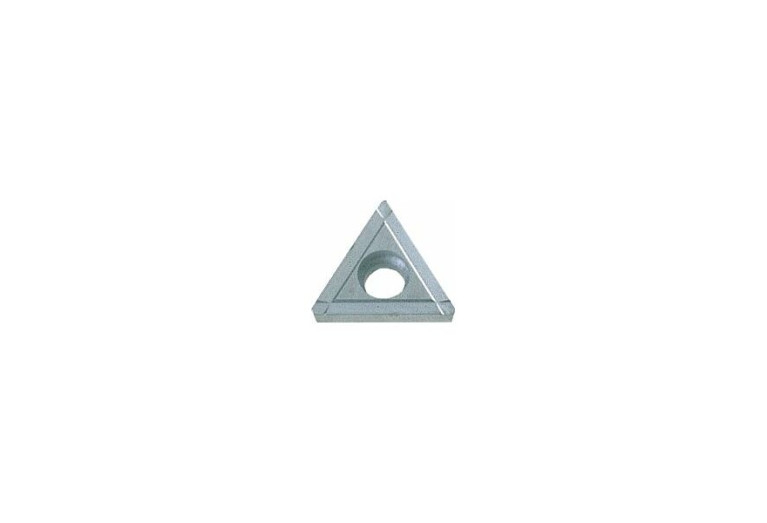

Главная Каталог продукции Toolunited 15 201-01 - Triangle insert 216740 26-660

216740 26-660

Артикул: 216740 26-660

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

CECC Cutting edge condition code

E - Rounded

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

TO1403054N

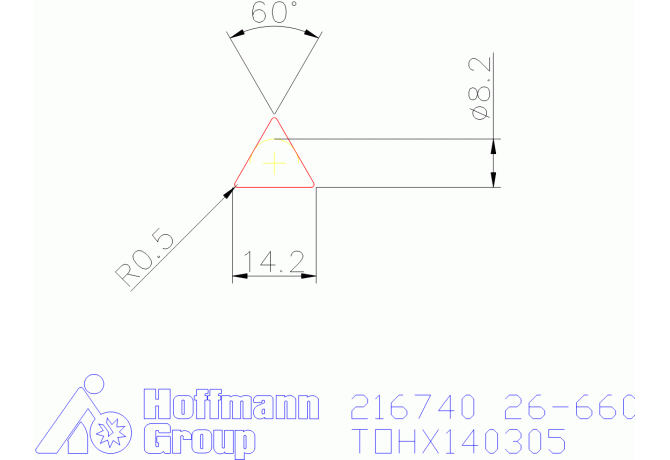

EPSR Insert included angle

60 Degree

FamilyProducts

KOMET Indexable inserts

GRDMFG Grade manufacturers designation

K10

IC Inscribed circle diameter

8.2 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

13.5 mm

LE Cutting edge effective length

13.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TO1403054N

Name Identifying order number

216740 26-660

NOI Insert index count

RE Corner radius

0.5 mm

S Insert thickness

3 mm

STDDES Standard designation

TOHX140305EN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.005 kg
