Главная Каталог продукции Toolunited 15 201-10 - Round insert RPHX 10T3MOSN TCM10

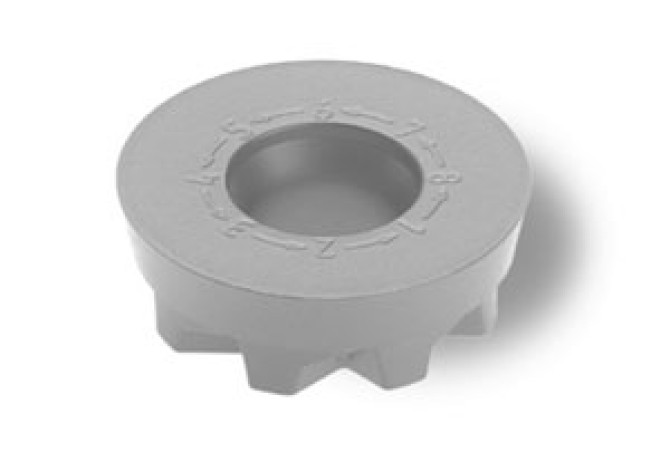

RPHX 10T3MOSN TCM10

Артикул: 11077408

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

FamilyProducts

Cermet milling insert

GRD2ND Standard designation of the grade 2nd application

HT-M10

GRD3RD Standard designation of the grade 3rd application

HT-K10

GRDMFG Grade manufacturers designation

TCM10

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

10 mm

ID Technical product number

11077408

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-10 - Round insert

M M-dimension

10 mm

Name Identifying order number

RPHX 10T3MOSN TCM10

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

RPHX10T3M0SN

TCINS Tolerance class insert

Working process

No working processes available
