Главная Каталог продукции Toolunited 15 201-10 - Round insert RCMX1003M0 LC240F

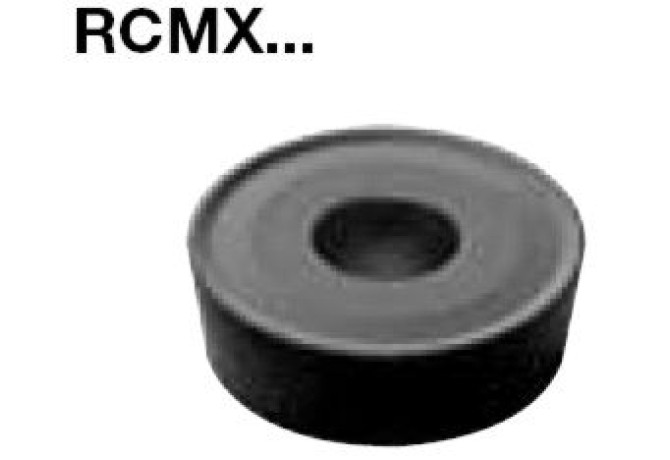

RCMX1003M0 LC240F

Артикул: 6412677

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

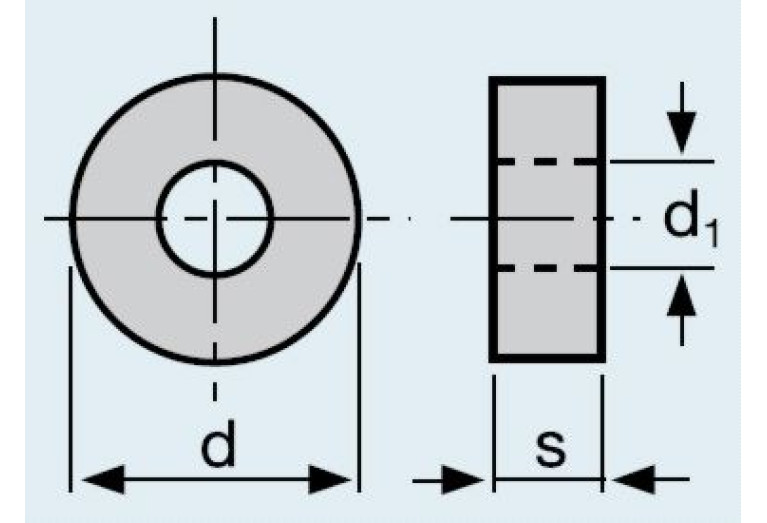

D1 Fixing hole diameter

3.6 mm

Delivery state valid from

7/1/2012

DIN

RC1003M07N

FamilyProducts

Round insert

GRD2ND Standard designation of the grade 2nd application

HC-M40

GRDMFG Grade manufacturers designation

LC240F

GRDPRIO Standard designation of the grade main application

HC-P40

IC Inscribed circle diameter

10 mm

ID Technical product number

6412677

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1003M07N

M M-dimension

10 mm

Materials

P,M

Name Identifying order number

RCMX1003M0 LC240F

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCMX1003M0

STDDESAnsi Standard designation ANSI

RCMX1003M0

TCINS Tolerance class insert

Working process

DDA - External turning
