Главная Каталог продукции Toolunited 15 201-10 - Round insert RCMT0803M0 KC5010

RCMT0803M0 KC5010

Артикул: 1866000

В наличии

В корзину

Описание

Характеристики

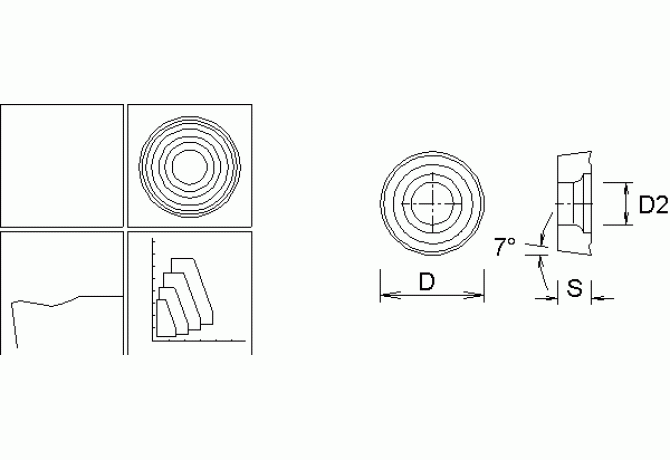

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

PVD

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

1/27/2013

DIN

RC0803M02N

FamilyProducts

Screw-On Insert RCMT

GRD2ND Standard designation of the grade 2nd application

HC-P15

GRD3RD Standard designation of the grade 3rd application

HC-N20

GRDMFG Grade manufacturers designation

KC5010

GRDPRIO Standard designation of the grade main application

HC-K15

IC Inscribed circle diameter

8 mm

ID Technical product number

1866000

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0803M02N

M M-dimension

8 mm

Name Identifying order number

RCMT0803M0 KC5010

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCMT0803M0

STDDESAnsi Standard designation ANSI

RCMT0803M0

TCINS Tolerance class insert

Working process

No working processes available
