Главная Каталог продукции Toolunited 15 201-10 - Round insert RCMT 3209MOSN-SM CTC1115

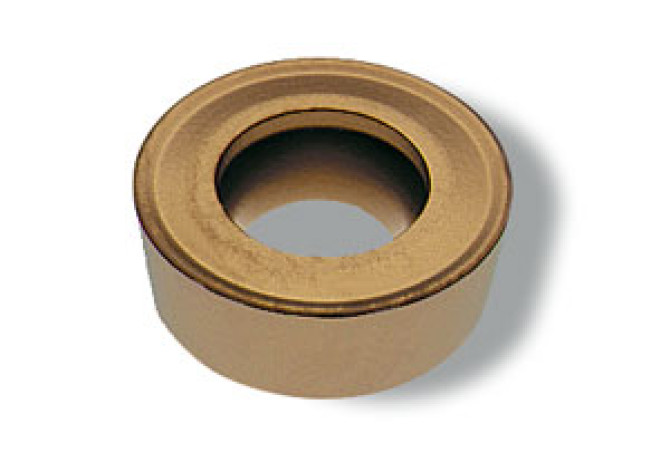

RCMT 3209MOSN-SM CTC1115

Артикул: RCMT 3209MOSN-SM CTC1115

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.5 mm

DIN

RC3209M03N

FamilyProducts

turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M15

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

CTC1115

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

32 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC3209M03N

M M-dimension

32 mm

Materials

P,M,K

Name Identifying order number

RCMT 3209MOSN-SM CTC1115

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

RCMT3209M0SN

TCINS Tolerance class insert

Working process

No working processes available
