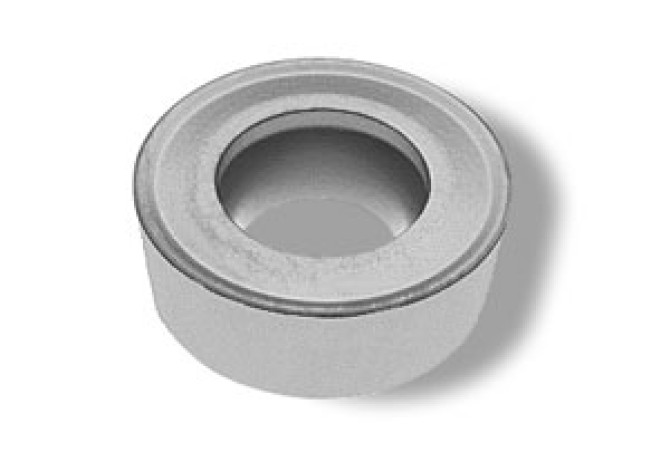

RCMT 1606MOSN-SM S40T

Артикул: RCMT 1606MOSN-SM S40T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.3 mm

DIN

RC1606M03N

FamilyProducts

turning insert

GRD2ND Standard designation of the grade 2nd application

HW-M40

GRDMFG Grade manufacturers designation

S40T

GRDPRIO Standard designation of the grade main application

HW-P40

IC Inscribed circle diameter

16 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1606M03N

M M-dimension

16 mm

Name Identifying order number

RCMT 1606MOSN-SM S40T

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

RCMT1606M0SN

TCINS Tolerance class insert

Working process

No working processes available
