Главная Каталог продукции Toolunited 15 201-10 - Round insert RCGT1003M0-BAL HB10

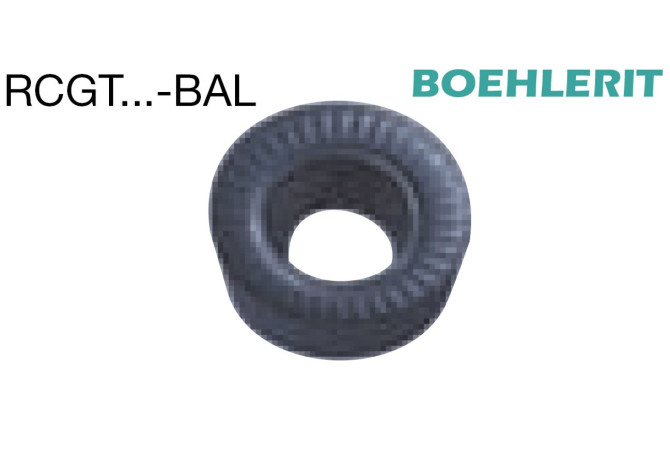

RCGT1003M0-BAL HB10

Артикул: RCGT1003M0-BAL HB10

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BAL

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4 mm

Delivery state valid from

005

DIN

RC1003 3N

FamilyProducts

Round insert

GRDMFG Grade manufacturers designation

HB10

GRDPRIO Standard designation of the grade main application

HW-K10

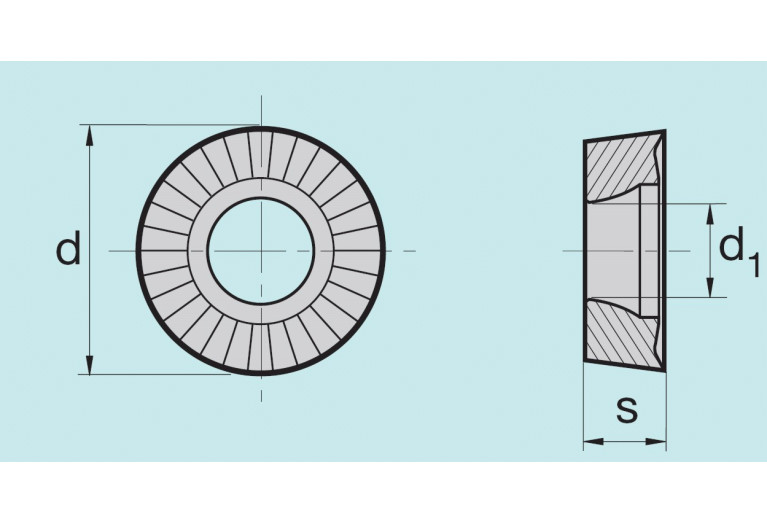

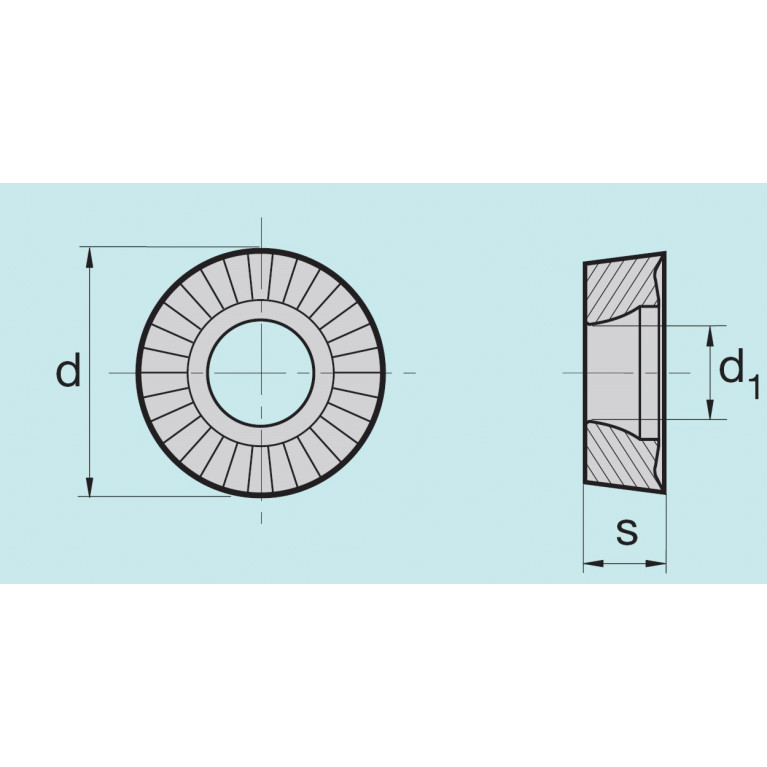

IC Inscribed circle diameter

10 mm

ID Technical product number

RCGT1003M0-BAL HB10

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1003 3N

M M-dimension

10 mm

Materials

Name Identifying order number

RCGT1003M0-BAL HB10

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCGT1003M0

STDDESAnsi Standard designation ANSI

RCGT1003M0

TCINS Tolerance class insert

Working process

DDA - External turning
