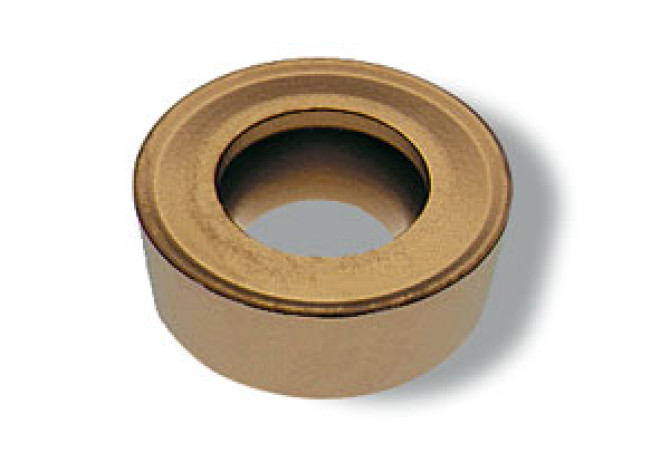

RCGT 0602MOEN-SM CTCP125

Артикул: 11542390

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+Al2O3

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

DIN

RC0602M03N

FamilyProducts

turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M20

GRD3RD Standard designation of the grade 3rd application

HC-K30

GRDMFG Grade manufacturers designation

CTCP125

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

6 mm

ID Technical product number

11542390

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0602M03N

M M-dimension

6 mm

Materials

P,M,K

Name Identifying order number

RCGT 0602MOEN-SM CTCP125

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

RCGT0602M0EN

STDDESAnsi Standard designation ANSI

RCGT21.5VEN

TCINS Tolerance class insert

Working process

No working processes available
