Главная Каталог продукции Toolunited 15 201-10 - Round insert 222280 16

222280 16

Артикул: 222280 16

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

MEGACOAT NANO

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

RO1605M03N

FamilyProducts

ROMU... M0ER-GM

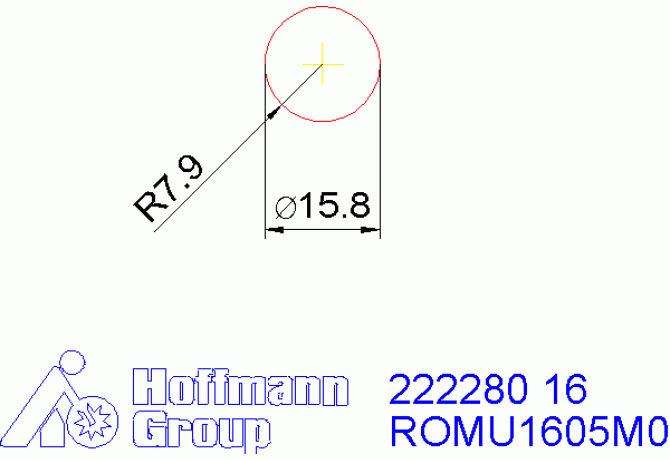

IC Inscribed circle diameter

15.8 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RO1605M03N

M M-dimension

15.8 mm

Name Identifying order number

222280 16

S Insert thickness

5.48 mm

STDDES Standard designation

ROMU1605M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.011 kg
